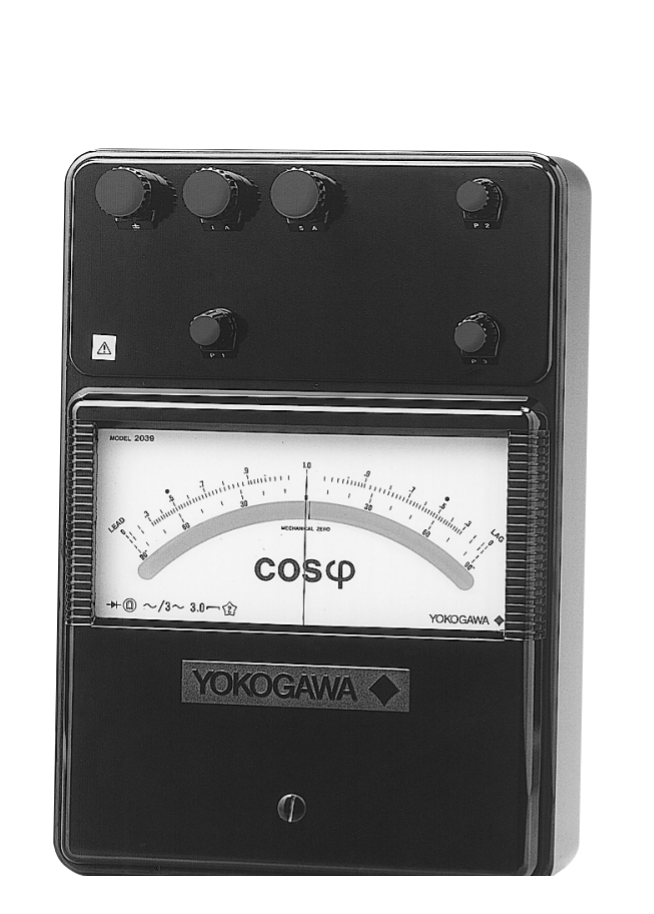

Yokogawa 2039 03 便携式精密指针式功率因素表

Rated Current: 5/25A

Rated Voltage: 120V (Used between 60 and 300 V.)

Operating Principle: Rectifier type

Class: JIS C 1102 : 1997 Class 3.0

Operating Position: Horizontal

Rated Frequency: 45 ~ 65 Hz

Scale Length: Approximately 135 mm (Deflection Angle: 85°)

Scale: Lead 0-0.3 to 1.0 to 0.3-0 lag (with phase angle scale)

Effective Measurement Range: Lead 0.5 to 1.0 to 0.5 lag

Approx. Consumed Power Voltage Circuit (120 V): 0.14 VA

Approx. Current Circuit (5 A): 2.4 VA

Operating Temperature Range: 0 ~ 40°C

Operating Humidity Range: 30 ~ 75% RH

Storage Temperature Range: -10 ~ 50°C

Storage Humidity Range: 25 ~ 80% RH

Dimension: 260 x 180 x 115 mm

Weight: 2.9 kg
