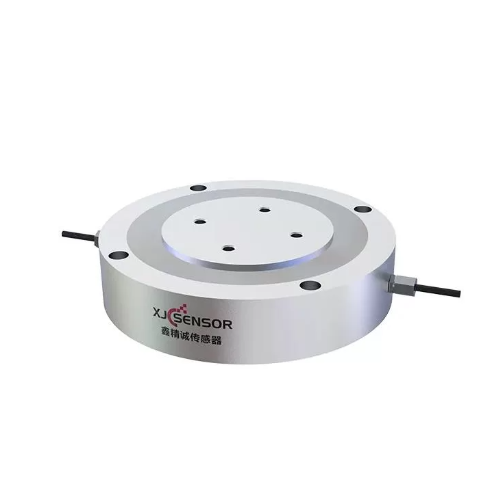

XJCSENSOR X-2A-D60-H20 2轴称重传感器 (10kg~300kg)

Capacity: 10kg~300kg

Non-linearity: ≤0.3F.S.

Repeatability: ≤0.2%F.S.

Zero balance: ±3%F.S.

Operating temp range: -20~80°C

Compensated temp range: -10~40°C

Insulation: ≥2000MΩ/50VDC

Recommended excitation voltage: 5-10 VDC

Safe load limit: 150%F.S.

Temp effect on output: ≤0.05%F.S./10°C

Temp effect on zero: ≤0.05%F.S./10°C

Long-term crosstalk error: ≤0.5%F.S.

Protection class: IP64

Cable size: φ3*3m (two cable)
