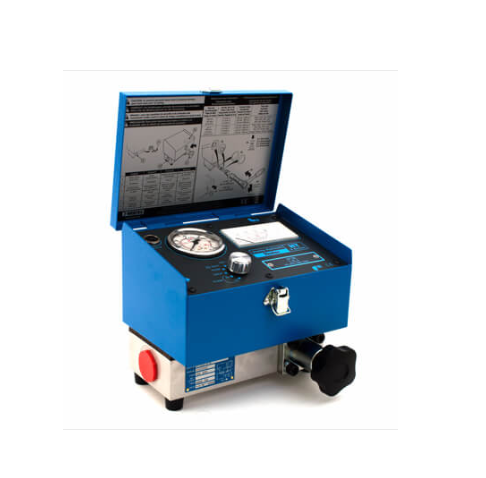

Webtec HT602-S-7 模拟式液压测试仪 (20-600 LPM; 0-480 bar)

  • 制造商:Webtec
    Model: HT602-S-7
    来源: United Kingdom
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Full flow range: 20-600 LPM

Low flow range max: 150 LPM

Pressure range: 0-480 bar

Fluid temp. range: 0 - 120°C

Speed (rpm): 300 - 6000

Inlet/Outlet ports: 1-7/8” -12UN #24 SAE ORB

Functional specification

Ambient temperature: 5 to 40°C (41-104°F)

Fluid type: Hydraulic oil

Accuracy: Flow: ± 1% of full scale

Pressure: ± 1.6% full scale

Temperature: ± 2°C (± 4°F)

Speed: ± 2% of full scale

Dimensions in mm (inches): 240 (9.45”) wide, 200 (7.87”) deep, 200 (7.87”) high

Weight: Unpacked 6.5Kg (14lbs)

Construction materials

Case: Painted mild steel

Flow block: High tensile aluminium

Seals: Viton as standard - EP seals on request
