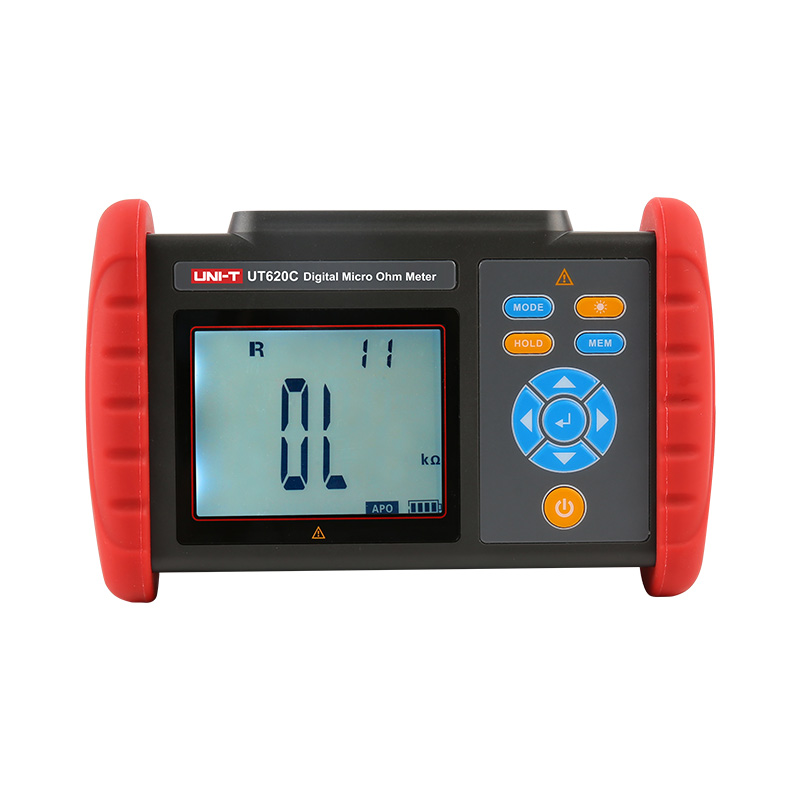

UNI-T UT620C 数字微欧姆表 (0.001mΩ~300.0KΩ )

DC Resistance measurement:

Range Resolution:

0.001mΩ~10.000mΩ 0.001mΩ

10.01mΩ~100.00mΩ 0.01mΩ

100.1mΩ~1000.0mΩ 0.1Ω

1.001Ω~10.000Ω 0.001Ω

10.01Ω~100.00Ω 0.01Ω

100.1Ω~1000.0Ω 0.1Ω

1.001KΩ~10.000KΩ 0.001KΩ

10.01KΩ~100.00KΩ 0.01KΩ

100.1KΩ~300.0KΩ 0.1KΩ

Acurracy: ±0.1%±20dgt

Features:

Measurement method: Four-wire measurement

Screen: LCD screen (71 mm×52mm)

Backlight: √ (Controllable gray and white screen)

Response time: Around 2times/sec

Power supply: DC 3.7V 2000mAh lithium battery

Power: Measurement power: ≤8W

Data storage: 500 set

Overload protection: √

Auto power off: √

Measurement current: ≥1A

Open circuit voltage: ≤4.2V

Operating temperature:  18℃~28℃; below 70%rh

Storage temperature:  -15℃~50℃; below 70%rh

Insulation resistance: Above 10MΩ (the voltage between circuit and shell: 500V)

Withstand voltage: AC 3700V(between circuit and shell)

Applicable safety regulations: IEC61010-1; CAT Ⅲ 600V; Pollution degree 2
