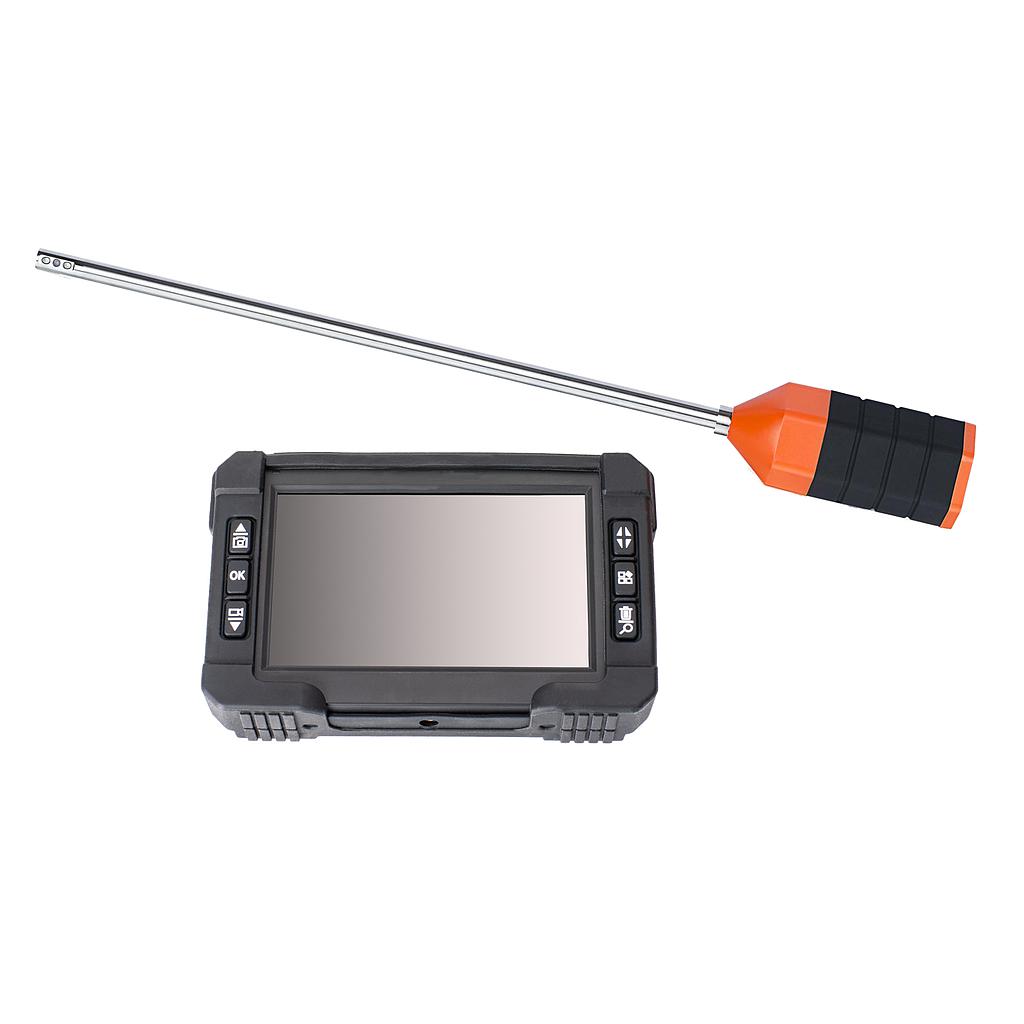

TvbTech 4908AL 无线侧视图刚性内窥镜检查摄像机

Camera

Image sensor: CMOS

Diam. of Insertion Tube: 9mm

Insertion Tube Length: 300mm

Overall Length: 400mm

Tube Material: Stainless Steel

Light Source: 2 high intensity LEDs for 1.5m lighting distance

Effective Pixels: 768 x 494(NTSC) / 752 x 582(PAL)

Mains Battery Charger: Yes

Depth of Field (DOF): 6cm-infinite

Field of View (FOV): 55°

Water Proof: IP67 (Probe only)

Operation Temperature: -10oC ~ 60oC

Battery capacity: 1500mAh

Work Time: 4 hours

Charge time: 5 hours

Monitor

Screen Size: 5" TFT-LCD

Display Resolution: 320(R.G.B.) x 240dot

Video Format: NTSC / PAL

Modulation Mode: FM

Receive Sensitivity: -85dBm (module)

Built-in Li-Battery Capacity: 1100MAH/3.7V

Charge Time/Work Time: 3 hours

Consumption Current: 500MA(MAX)

Memory: Micro SD Card

Picture Format: JPG

Video Format: AVI

Picture/Video Resolution: 640x480

Frame Rate: 30Frame/S

Operation Temperature: 0~+45oC

Storage Temperature: -20~+60oC

INCLUDED:

1 x camera probe

1 x monitor

2 x USB cable

1 x AV video out cable

1 x magnet stand for monitor

1 x power adapter for monitor

1 x power adapter for camera

1 x manual

1 x Aluminum Case
