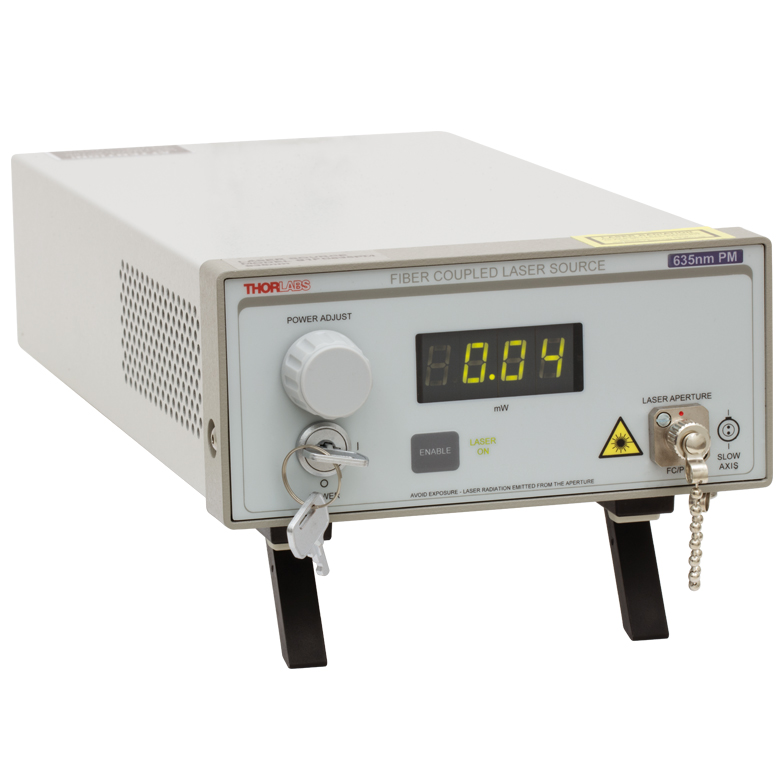

THORLABS S1FC635PM 多模式电源 (635 nm)

Wavelength(*): 635 nm

Min Full Output Power: 2.5 mW

Extinction Ratio(*): >20 dB

Stability: 15 min: ±0.05 dB, 24 hr:±0.1 dB (After 1 hr Warm-up at 25 ± 10 °C Ambient)

Display Accuracy: ±10%

Setpoint Resolution: 0.01 mW

AdjustmentRange: ~0 mW to Full Power

Environmental

- Operating Temperature: 15 to 35°C

- Storage Temperature: 0 to 50°C

AC Input: 115 VAC / 230 VAC (Switch Selectable) 50 - 60 Hz

Modulation Input: 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only

Modulation Bandwidth:

- 5 kHz Full Depth of Modulation

- 30 kHz Small Signal Modulation

Fiber: PM630-HP

(*):The information provided in the specifications table is meant to serve as a guideline. However, since each pigtailed laser diode is unique, the specific data is included on a specifications sheet that is shipped with the product
