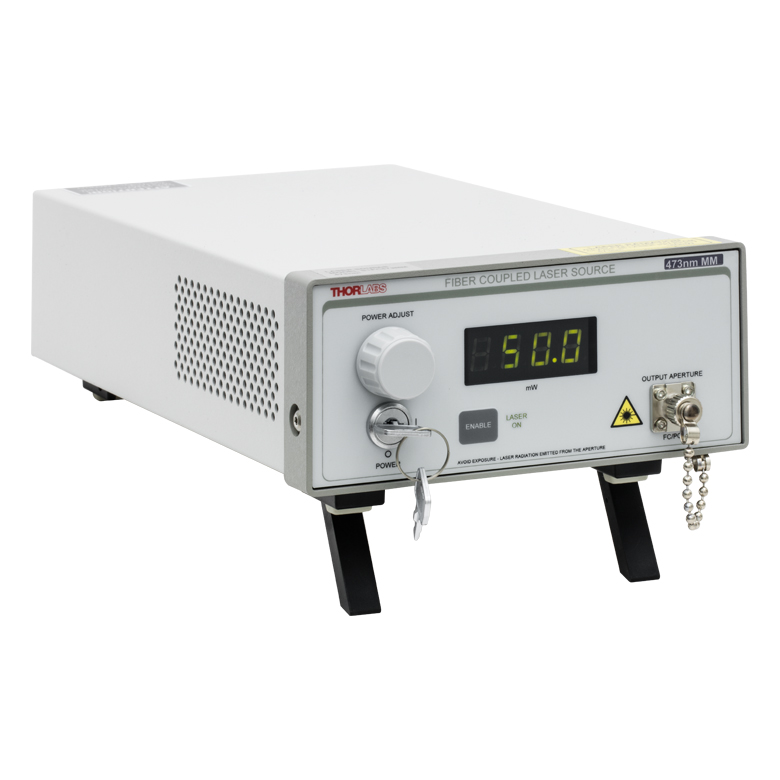

THORLABS S1FC473MM 多模式电源 (473 nm)
制造商: THORLABS Model: S1FC473MM - 报价要求
- 报价要求
- 联系
Wavelength: 473 nm
Max Output Power (*): 50 mW
Stability: 15 min: ±0.05 dB, 24 hr: ±0.1 dB (After 1 hr Warm-Up at 25 ± 10 °C Ambient)
Display Accuracy: ±10 %
Setpoint Resolution: 0.1 mW
Adjustment Range: ~0 mW to Full Power
AC Input: 115 / 230 VAC (Switch Selectable) 50 - 60 Hz
Modulation Input: 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only
Modulation Bandwidth:
- 5 kHz Full Depth of Modulation
- 30 kHz Small Signal Modulation
Fiber: FG105UCA
Environmental:
- Operating Temperature: 15 to 35°C
- Storage Temperature: 0 to 50°C
(*): Output power ranges from 0 - 50 mW. Due to variations between laser diodes, maximum output power may be higher
