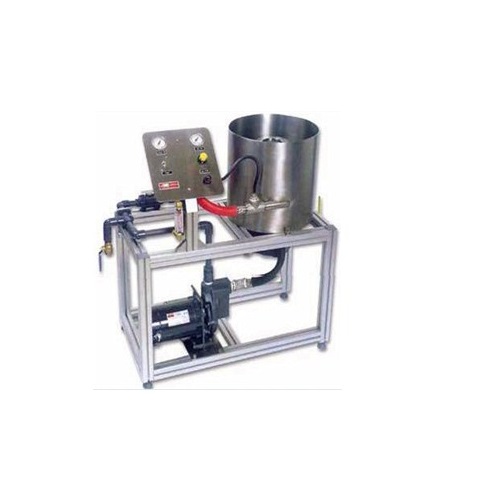

SKZ Industrial SKZ1030 实验室浮选池 (28 l)

Outfall up and down range of activities 0 ∽ 100

Flow calculation control

Tank capacity: 28 liters

Treated pulp capacity: 280g dry pulp

Pulp concentration: 0.8% ~ 1.2%

Tank size: Φ380 × 380mm

Tank material: stainless steel (1Cr18Ni9Ti)

Air requirement: the maximum amount of 95psi

Gas meter: 0.25 ~ 2.5 m3 / h adjustable

Flotation deinking: Temperature range: 50 ~ 70 ℃ controlled adjustable

Heating power: 2.2KW Voltage 220V

Pulp material circulation: Stainless steel pump

Pump motor power: 750W Voltage 380V

Pump motor speed: 1400 r / min

Heat pump temperature: 0 ~ 100 ℃

Pump rated flow rate 3.6 cubic meters / hour

Pump suction and discharge kinematic viscosity: 3000 centipoise (cp)

Tank size: Φ380 × 380mm
