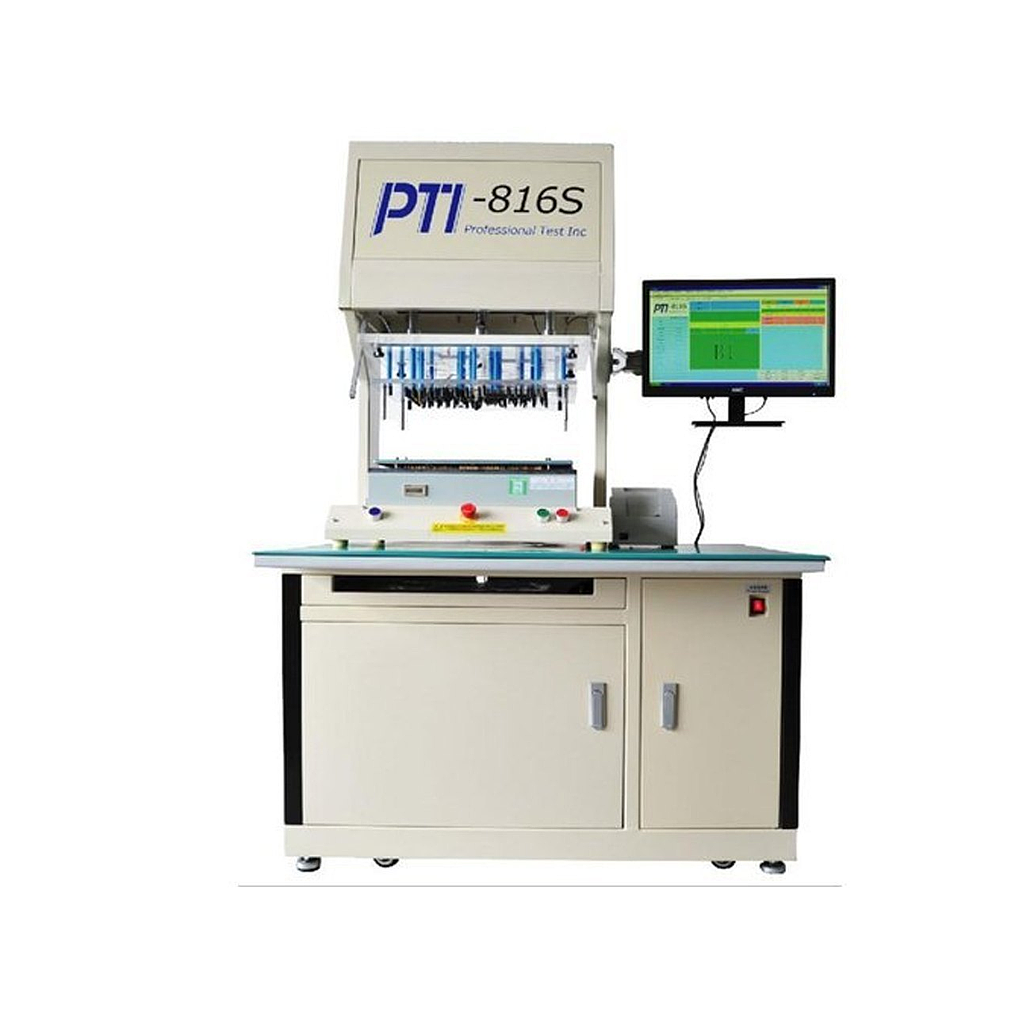

PTI PTI-816S In Circuit Tester

Test pin point: standard: 320 point

Large Mainframe: can expand to 4096 point

Test item : maximum:300000setps

Test time: open/short circuit test:1000 point ≤1s(Typical DUT)

component: 0.5ms—30ms (Typical DUT)

Test range and conventional precision:

R: CC

L: A

CV

Phase

Phase

C: A

DC

Phase

DC current:(1uA- 1A) (1%- 5%)

DC voltage:(0-100v), (1%-5%)

(Diode / transistor test) Zener diode:(0-50v)

Guarding: Guarding point automatic selection, each test step 5 pionts

PCB size:: SizeA:380mm(W)×310mm(D)×100(H)

SizeB:450mm(W)×330mm(D)××100(H)

SizeB: 480mm(W)×330mm(D)××1000(H)

Optional:Custom client

Computer: Inter Pentium 4 and better

Monitor: LCD Monitor

Memory: 3.5’1.44MB Floppy disk/80GB HDD

Software system: Multilingual interface

Printer: Standard 76 mm needle printer

Other devices: Photoelectric protector

Option function: TESTJET: QTY 64pcs (Standard Configure)

Pneumatic : cylinder bore 100mm,cylinder stroke 200,maximum pressure:470kg/3Bar

cylinder bore 125mm,cylinder stroke 160,maximum pressure:735kg/6Bar

Air pressure:4-6kg/cm2,Air consumption:4Liter/Cycle

Power standard: AC100V-120V,200V-240V/50Hz-60Hz/350W

Size,and weight: 1000mm(L)*800mm(W)*1600mm(H), about 260kg

Utilize environment:Temperature: 0°C~40°C Humidity:20~80%

Option

1.SFIS(Shop-Floor Informalion System)

2.Bar code management and the remote control

3.Double press system

4.Good seal system
