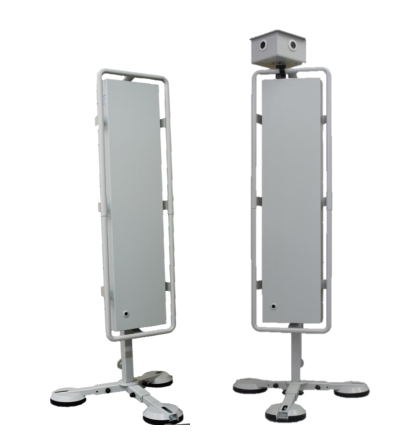

POLIMASTER PoliGate Deployable 辐射监测器

Gamma detectors : Plastic scintillators (PVT); Detector volume is 5300 cm3

Energy range : 30 keV to 3 MeV

False alarm rate : < 1/1000 passages

Communication : Ethernet, Wi-Fi

Ingress protection : IP65, IP67 in transport cases

Power supply : 90-260 V AC / 14V DC adapter;12 V built-in rechargeable battery (> 8 h of operation)

Speed ( km/h):5

Control zone (W x H, m): 1.5x2

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 200(5.5)

137Cs, kBq, (µCi): 34 (0.9)

60Co, kBq, (µCi): 18 (0.5)

238U, g: 204

235U, g: 14

239Pu,g: 0.4

Speed ( km/h):5

Control zone (W x H, m): 3x2

Minimal detectable amounts of nuclear and radioactive materials:

241Am, kBq, (µCi): 610 (16.5)

137Cs, kBq, (µCi): 100(2.7)

60Co, kBq, (µCi): 55 (1.5)

238U, g: 610

235U, g: 40

239Pu,g: 1.1

Operating conditions:

ambient temperature: –30 °C to 50 °C

atmospheric pressure: 84 kPa to 106.7 kPa

relative humidity: up to 100 % at 35 °C

Weight

- Detection Block < 51 kg

- Control Block < 9 kg

- Transport Case No.1 < 16 kg (empty); 74 kg (loaded)

- Transport Case No.2 < 17 kg (empty), 72 kg (loaded)

- Transport Case No.3: < 17 kg (empty), 72 kg (loaded)

Dimensions:

- Detection Block 116×34×16 cm(H×L×W)

- Control Block 30×25×25 cm (H×L×W)

- Transport Case No.1 80×60×50 cm (L×W×D)

- Transport Case No.2  150×50×30 cm (L×W×D)

- Transport Case No.3: 150×50×30 cm (L×W×D)
