PCE WSAC 50W 24-ICA 风速计 (4~180 km/h; ISO Calibration Cert.)

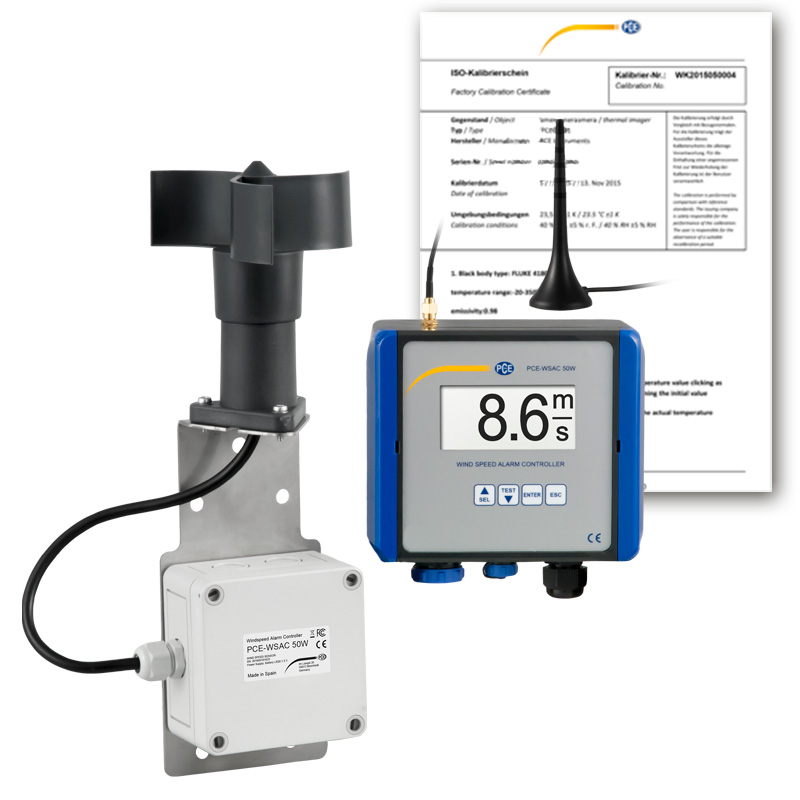

- Display of anemometer PCE-WSAC 50W 24

Entrance: Pulse, analog (4 ... 20-mA) or radio

Radio: IEEE 802.15.4 ISM 2.4 GHz

Units: km/h, mph, m/s

Power supply for sensors: +15V DC

Analog output: 4 ... 20-mA

Maximum input impedance: 500 Ω

Resolution of the analog output: 10 bits

Accuracy of the analog output: ± 1.5%

Alarm relay: Max. 250V AC, 8 A

Display: Backlit 128 x 64 pixel LC display

Casing: Robust plastic housing

Protection class: IP65

Dimensions: 145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in

Weight : 650 g / 1.4 lbs

- Sensor of anemometer PCE-WSAC 50W

Measuring range: 4 ... 180 km / h

Minimum start speed: 8 km / h

Accuracy:

± 1 km / h in the range 4 ... 15 km / h

± 3% in the range 16 ... 180 km / h

Power supply: Battery mono cell D 1.5V DC

Power consumption: Approx. 0.3 W with 1.5V DC power supply

Housing material: PA + FG

Ball-bearing: Stainless steel X65Cr13

Holder: Stainless steel AISI 304

Weight (with standard bracket): About 680 g / 1.5 lbs

Weight with self-leveling bracket: About 900 g / 2 lbs

Dimensions: 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in

Storage temperature: -35 ... 70°C / -31 ... 158°F

Ambient temperature: -20 ... 70°C / -4 ... 158°F

Protection: IP65

Delivery Scope:

1 x Display of anemometer PCE-WSAC 50W 24-ICA

1 x Wind sensor of the anemometer

1 x Self-leveling additional bracket

1 x Radio antenna

1 x Battery Monocell D 1.5V DC

1 x User manual

1 x ISO calibration certificate
