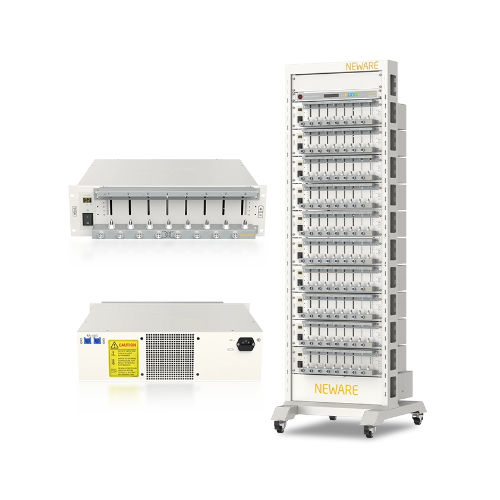

NEWARE CT-4008Q-5V6A-164 电池测试系统 (5V, 6A)

Voltage

+ CV output range: 10mV~5V

+ Min discharge voltage: 1V for universal holder, 1.5V for 2m cable

+ Accuracy: ± 0.02% of FS

+ Stability: ± 0.02% of FS

Current

+ Output range/channel: Range 1: 0. 2mA-100mA; Range 2: 100mA-500mA;

                                        Range 3: 500mA-3A; Range 4: 3A-6A

+ Accuracy: ± 0.02% of FS

+ CV cut-off current Range 1:0.1mA; Range 2:0.5mA; Range 3:3mA; Range 4:6mA

+ Stability: ± 0.02% of FS

Power:

+ Output power/channel: 30 W

+ Stability: ± 0.02% of FS

Time

+ Current response time: <1.5m (10%FS~90%FS)

+ Working step time: ≤(365*24)h/step Time format-00:00:00.000(h、m、s、ms)

Data Record

- Data record conditions

+ Min data record interval: 100ms

+ Min voltage change:5mV

+ Min current change:0.1mA; 0.5mA; 3mA; 6mA

- Frequency: 10Hz

Charge

+ Charge modes: CC、CV、CCCV、CP

+ Cut-off condition: Voltage、Current、Time、Capacity、Energy, -△V

Discharge

+ Discharge modes: CC、CV、CR

+ Cut-off condition: Voltage、Current、Time、Capacity, Energy

Pulse

+ Charge: Constant current, Constant power

+ Discharge: Constant current, Constant power

+ Min pulse width: 500ms

+ Pulse counts: Up to 32

+ Chg and Dischg switch: Supported

+ Cut-off condition: Voltage、Time

DCIR: Calculated DCIR values available in BTSDA

Cycles

+ Max cycles: 65535

+ Max steps: 254

+ Nest: 3
