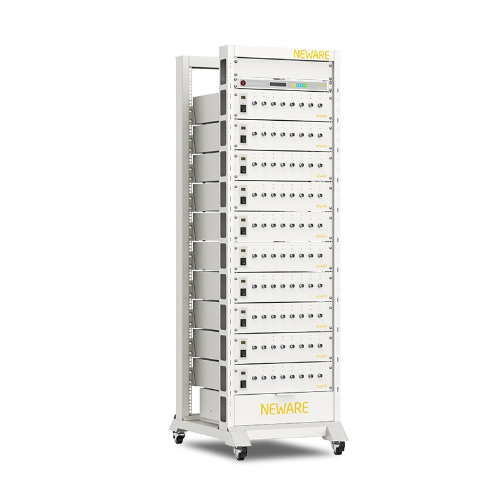

NEWARE CT-4008Q 5V12A-164 Battery Testing System (5V, 100mA)
制造商: NEWARE Model: CT-4008Q 5V12A-164 - 报价要求
- 报价要求
- 联系
Voltage
+ CV output range: 25mV~5V
+ Min discharge voltage: 2V for universal holder, 2.5V for 2m cable
+ Accuracy: ± 0.02% of FS
+ Stability: ± 0.02% of FS
Current
+ Output range/channel: Range 1: 0. 2mA-100mA; Range 2: 100mA-500mA;
Range 3: 500mA-6A; Range 4: 6A-12A
+ Accuracy: ± 0.02% of FS
+ CV cut-off current Range 1:0.1mA; Range 2:0.5mA; Range 3:6mA; Range 4:12mA
+ Stability: ± 0.02% of FS
Power:
+ Output power/channel: 60 W
+ Stability: ± 0.04% of FS
Time
+ Current response time: <1.5m (10%FS~90%FS)
+ Working step time: ≤(365*24)h/step Time format-00:00:00.000(h、m、s、ms)
Data Record
- Data record conditions
+ Min data record interval: 100ms
+ Min voltage change:5mV
+ Min current change:0.1mA; 0.5mA; 6mA; 12mA
- Frequency: 10Hz
Charge
+ Charge modes: CC、CV、CCCV、CP
+ Cut-off condition: Voltage、Current、Time、Capacity、Energy, -△V
Discharge
+ Discharge modes: CC、CV、CCCV、CP 、CR
+ Cut-off condition: Voltage、Current、Time、Capacity, Energy
Pulse
+ Charge: Constant current, Constant power
+ Discharge: Constant current, Constant power
+ Min pulse width: 500ms
+ Pulse counts: Up to 32
+ Chg and Dischg switch: Supported
+ Cut-off condition: Voltage、Time
DCIR: Calculated DCIR values available in BTSDA
Cycles
+ Max cycles: 65535
+ Max steps: 254
+ Nest: 3
