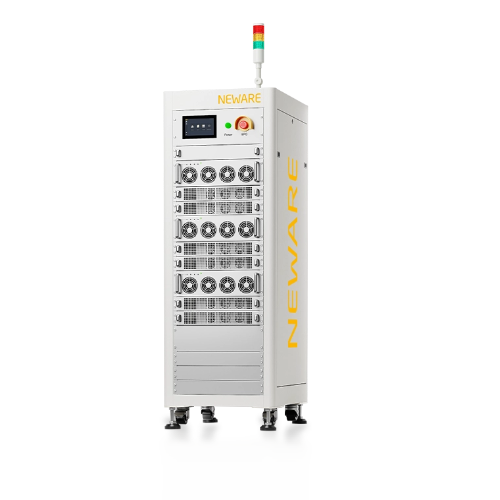

NEWARE CE-6002n-60V600A-H 模块测试系统 (3-60V)

1. Voltage

- Output range

+ Charge: 0V~60V

+ Discharge: 3V~60V

- Min discharge voltage: 3V

- Accuracy: ±0.02%of FS

- Resolution: 24bit

2. Current

- Output range: 3A~600A

- Accuracy(independent range): ±0.05%of FS

- CV cut-off current: 600mA

- Resolution: 24bit

3. Power

- Single channel output power: 36KW

- Whole machine output power: 72KW

4. Time

Current response time: ≤3ms

Current conversion time: ≤6ms

Min.step time: 0.1s

5. Charge/Discharge modes

- Charge/Discharge modes: CCC, CVC, CC-CVC, CPC, CCD, CVD, CPD, CRD

- Cut-off condition: Voltage, Current, ΔTime,Capacity, -ΔV

6. Simulation

- Charge: Current, Power

- Discharge: Current, Power

- Switch: Support continuous switching between charge and discharge

- Cut-off condition: Time, step line

- Stepsfile lines: 1.000.000

7. Pulse Mode

- Charge: Current, power

- Discharge: Current, Power

- Min pulse: 100ms

- Pulse counts: Up to 32

- Charge and discharge switch: supported

- Cut-off condition: Voltage,ΔTime

8. DCIR: DCIR by calculation
