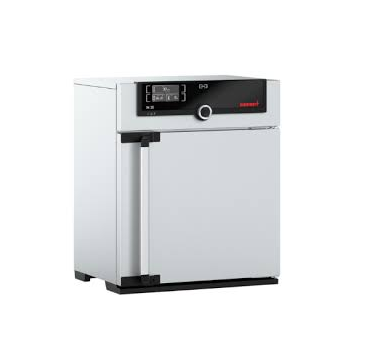

Memmert UNpa55 干燥箱（53L）

- Volume: 53 liters

- Interrior dimensions: 400W x 400H x 330D mm

- Exterior dimensions: 585W x 784H x 514D mm

- Stainless steel grids (standard): 1

- Max. number of grids: 4

- Working temperature range: at least 5 above ambient temperature to 800C

- Setting accuracy: 0.10C

- 2 Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking overfunctions in case of an error

-  ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour display.

- Language setting: German, English, Spanish, French, Polish, Czech, Hungarian

-  Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

-  Function setpointWAIT: the process time dose not start until the set temperature is reached

-  Calibration: three freely selectable temperature values

-  Adjustable parameters: temperature (Celsius or Fahrenheit), programme time, time zones

-  Convection: natural convection

-  Programme stored in case of power failure

-  Programming: AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

-  ControlCOCKPIT with USB port for uploading programmes, reading out protocol logs, activating the User-ID function

-  Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)

-  Ethernet interface on the rear of the appliance for reading out the protocol log and for uploading programmes and for online logging

-  Temperature control: mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature, overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display

-  Additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature

-  Autodiagnostic system: for fault analysis

-  Alarm: visual and acoustic

-  Door: fully insulated stainless steel door with 2-point locking

-  Structured stainless steel housing, scratch-resistant, robust and durable; rear of zinc-plated steel

-  Internal data logger with a storage capacity of at least 10 years

-  Voltage: 230 V, 50/60 Hz

-  Electrical load: 2000 W

-  Ambient temperature: 5 – 400C

-  Humidity: max. 80% rh, non-condensing

Accessories:

+ Works calibration certificate at 800C (Memmert supply)

+ Stainless steel grid, 1 pc

+ USB stick with AtmoCONTROL software

+ Manual
