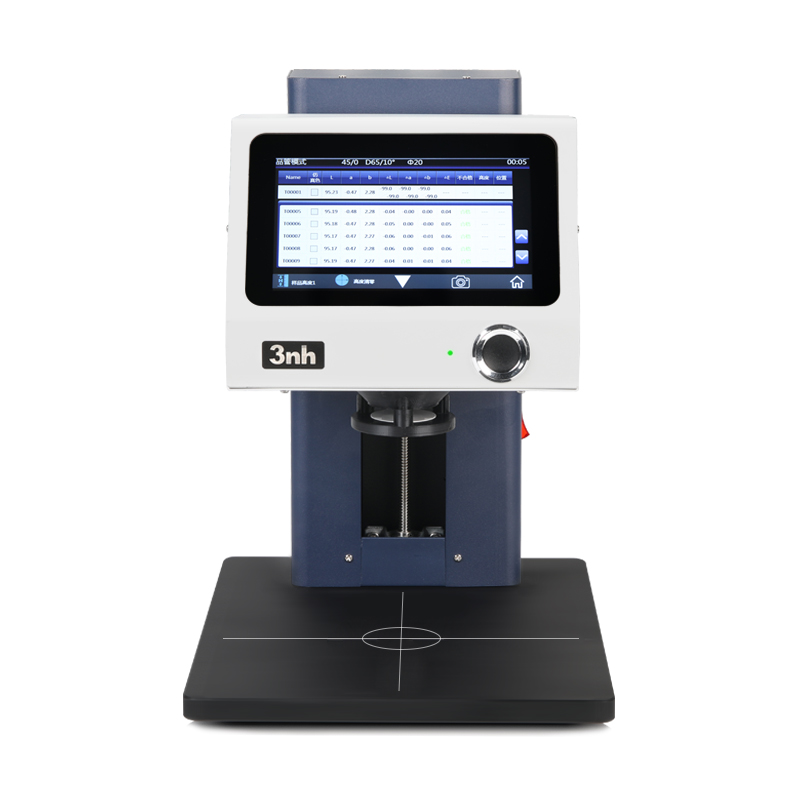

Lonroy YL 4560 非接触台式分光光度计 (Φ20mm)

Application:

45/0 non-contact benchtop spectrophotometer can achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement

Specification:

Light Source: Full spectrum LED light, UV light

Sensor: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 400~700nm/10nm output

Reflectance Range: 0~200%

Measuring Aperture: Φ20mm(can be customized <20mm)

Non-contact Distance :7.5mm

Data Storage: Sample mode + QC mode: 40,000; Continuous statistics mode: 10,000

Sample Height: 0~150mm

Observer Angle: 2°/10°

Measuring Time: About 1.5s

Dimension: 330*250*370mm

Weight: About 10 kg

Power Supply: DC 24V, 3A Power Adapter

Display Screen: 7″ TFT Capacitive Screen-touch Display

Data Port: USB/RS-232,Bluetooth®4.0

Language: Simplified Chinese,Traditional Chinese,English
