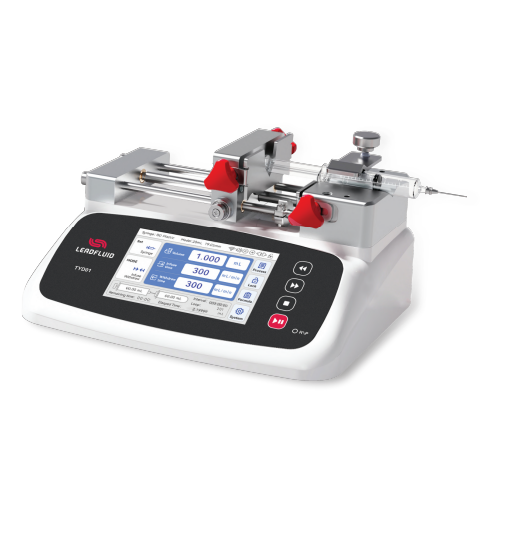

Leadfluid YD01-01V3 实验室注射泵 (10μL-60mL)

Work mode: infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode

Number of channel: 1

Stroke of pump: 110mm

Advance per microstep: 0.156μm/μstep

Linear speed: 1μm/min ～150mm/min

Linear resolution: μm/min

Accuracy: error<±0.35%,(>30% of pump stroke)

Max rated linear force: >16kgf

Thrust regulation:  1～100% arbitrary adjustable

Syringe size: 10μL～60mL

Syringe selection: built-in main manufacturers, the main model syringe to choose.

Can use custom syringe, direct input syringe size and diameter

Flow rate: 0.184nL/min～83.318mL/min

Flow calibration: through the calibration procedure to obtain more accurate fluid volume

Display: 5-inch color LCD screen display and transfusion volume, residual fluid volume, flow ,operation direction, syringe specification, etc. Animation display operation

Operation mode: touch screen + button

Power-off memory: storing the running parameters automatically

State signal output: 1 road start-stop status ,1 road direction status

Control signal input: 1 road startup status ,1 road directional signal

Communication interface: RS485 communication interface, MODBUS protocol

Dimension mm(L×W×H): 240×196×125mm

Weight: 2.95kg

Power supply: AC100～240V，50/60Hz

Working environment: Temperature 5～40℃, relative humidity＜80%
