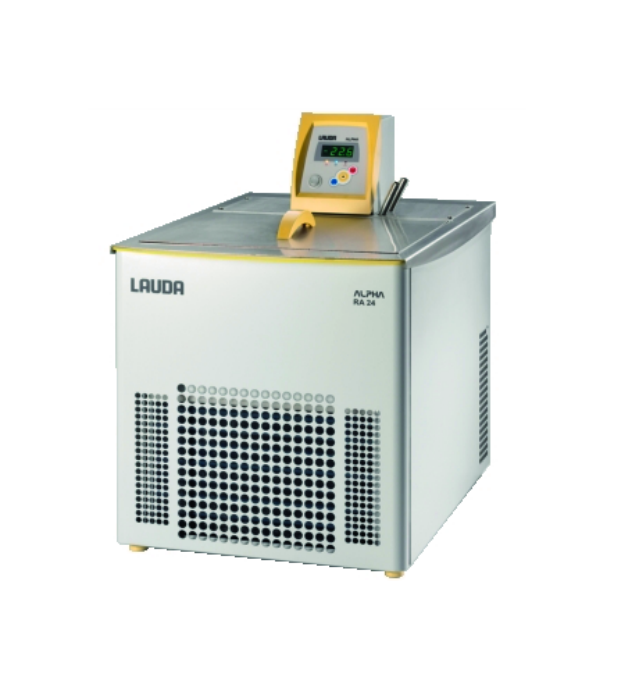

Lauda RA 24 冷却恒温器 (-20 ~ 100°C, 22 L)

Working temperature min.: -25 °C

Working temperature max.: 100 °C

Ambient temperature min.: 5 °C

Ambient temperature max.: 40 °C

Temperature stability: 0.05 ±K

Application: external | External and inside the bath | Inside the bath

Heater power: 1.5 kW

Cooling output at 20°C measured with ethanol: 0.425 kW

Cooling output at 10°C measured with ethanol: 0.37 kW

Cooling output at 0°C measured with ethanol: 0.33 kW

Cooling output at -10°C measured with ethanol: 0.225 kW

Cooling output at -20°C measured with ethanol: 0.08 kW

Cooling output at -25°C measured with ethanol: 0.02 kW

Power consumption: 1.8 kW

Bath volume min.: 14 L

Bath volume max.: 22 L

Bath opening width :350 mm

Bath opening depth: 277 mm

Bath depth: 160 mm

usable depth :140 mm

Pump pressure max.: 0.2 bar

Pump flow max. (pressure): 15 L/min

Dimensions (WxDxH) in mm: 415x605x605
