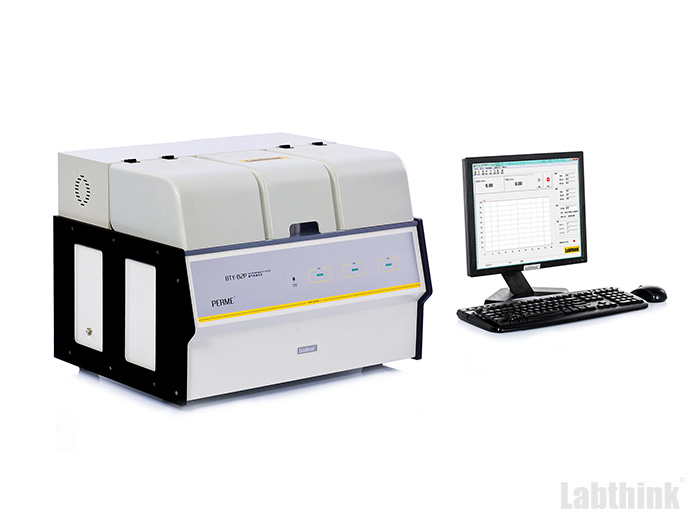

Labthink BTY-B2P 电池隔膜透气性测试仪

Test Range: 10~10,000 s/in2•100 mL•1.22 KPa

Pressure Range: 0~20 KPa (customization is available for others)

Resolution: 0.1 Pa

Specimen Size: Φ12 mm

Test Area: 0.025 sq.in. (0.16 cm2)

Number of Specimens: 3, 2 or 1

Test Gas: O2, N2, CO2 and 99.9% dry gas (outside of supply scope)

Gas Supply Pressure: 0.4MPa~0.6MPa

Port Size: Φ4 mm PU Tubing

Power Supply: 220VAC 50Hz / 120VAC 60Hz

Instrument Dimension: 645 mm (L) x 500 mm (W) x 468 mm (H)

Net Weight: 60 kg
