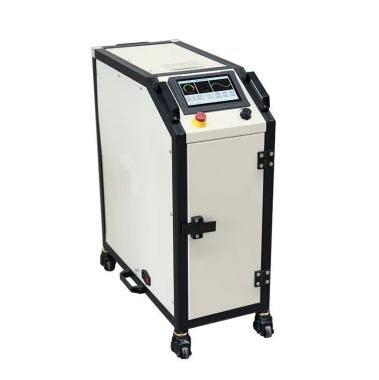

KiloVolt VLF-80 Portable High-voltage Test System
制造商: KiloVolt Model: VLF-80 - 联系
Output voltage (peak): 80 kV
Type wave: sine
Output frequency: 0.1, 0.05, 0.02 Hz (0.01 Hz – option)
Output current: 10 mA
Output voltage accuracy: ± 3 %
Waveform distortion: ± 5 %
Load carrying capacity:
0.1 Hz ≤ 1.1 μF
0.05 Hz ≤ 2.2 μF
0.02 Hz ≤ 5.5 μF
0.01 Hz ≤ 7.0 μF
Power supply: 220
Power frequency: 50/60 Hz
Current consumption: 20 A (peak), 15 A (average)
Power consumption: 3 kW
Power fuse tube: 20 A
Dimensions: 560×240×770 mm
Weight: 65 kg
Operational temperature: -10 to +40 °C
Relative humidity: up to 85 % RH
