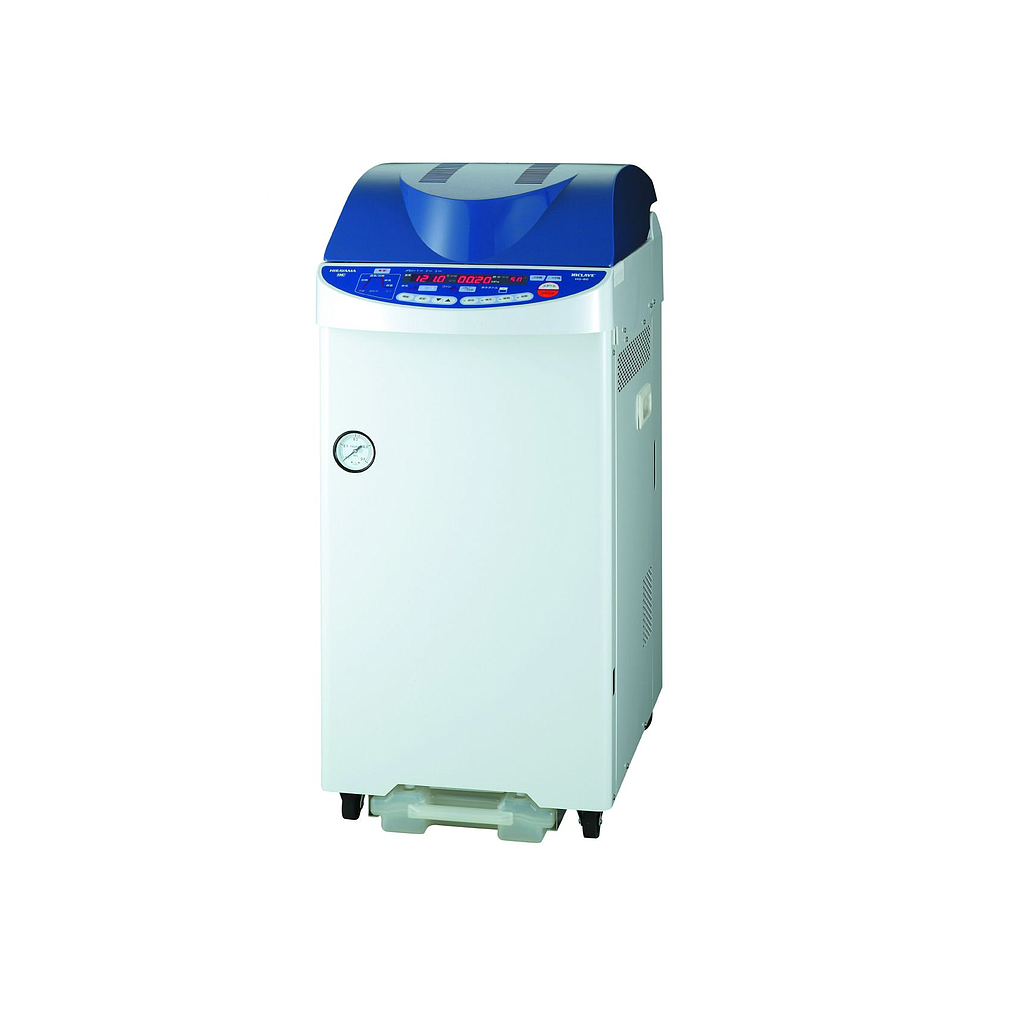

HIRAYAMA HG-80 高压灭菌器 (76L)

Outer Dimensions: 455(w)x691(d)x1030(h)mm

Chamber Dimensions: 364Ø x 730H mm

Chamber Volume: 76L working, 85L actual volume

Temperature Range: 105°C to 135°C

Maximum Allowable Pressure (Gauge Pressure): 0.26MPa

Sterilization Timer: 1 to 300 minutes

Media Warming/Holding Temp.: Programmable 45°C to 60°C to keep media warm up to 24 hours

Auto-Start Timer: Initiate a cycle 1 to 99 hours later

Cooling Fan: Switch to turn fan on or off

Air Removal Timer: Programmable, 3 to 9 minutes after temperature has reached 97°C

Steam Venting: Selectable from: No venting and three other venting rates

Temp. for Release of Lid Interlock: Programmable, 60°C to 97°C for greater safety and flexibility

Sterilization Program Cycles: 1) Liquid cycle, 2) Agar (liquid with warming) cycle, and 3) solid cycle (3 program for each cycle)

Additional Cycle for Agar Dissolution: Cycle for dissolving and keeping agar warm (no sterilization)

Agar Dissolution Protocol: Initially at 60°C - 100°C for 1-60 min, then at 45°C-60°C for up to 24 hrs.

Safety Features: Circuit breaker with GFCI, low-water power cut-off, over-temp power cutoff, over-pressure  power cut-off, safety valve, sensor for improper lid closing

Steam Condenser: 15-liter water tank

Drain Water Bottle: 2 liters

Power Source: AC 220/230/240V, 50/60 Hz (specify voltage when ordering)

Power Consumption: 2kW, optional 3kW 3.8kW

Net Weight (Approx.): 62 kg 73 kg

Supplied Accessories: SS, Wire basket 2 pcs (HG-80 3 pcs), Drain bottle, Heater cover and Caster stopper (2pcs)
