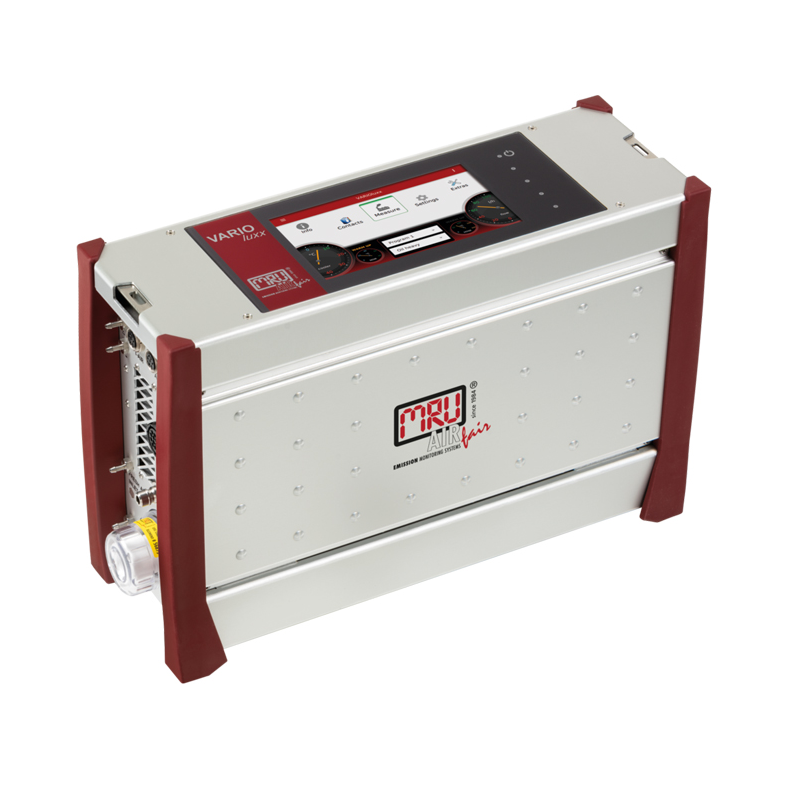

EiUK VARIO Luxx 便携式合成气分析仪

Operating system: LINUX

Display, operation: 7" TFT (800 x 480 px) colour display, backlit, with touch pad

Data storage type: dynamic, internally 10,000 data sets, external USB stick

Interface to PC/notebook: Ethernet, WiFi, RS 485

Cable/wireless communication interface: RS 485, RJ45 (Ethernet), WiFi

Printer: external USB/WiFi printer

Analog output/input 4 ... 20 mA: 8 channel out, 4 channel in, user configurable

Universal analog input (AUX): 0 ... 10 Vdc, 4 ... 20 mA, NiCrNi-thermocouple, RS 485

System warm up time: 30 minutes, typical

Mains free operation time: Li-Ion, 48 Wh, for standby 1 hour (optional additional battery, 48 Wh Li-Ion)

Operating conditions: +5 ... +45 °C; RH up to 95% non condensing

Storage temperature: –20 ... +50 °C

Power supply: 86 ... 265 Vac, 47 ... 63 Hz, 105 W (up to 600 W with heated gas sample line)

Protection class: IP20

Dimensions (W x H x D): 430 x 290 x 150 mm

Weight: approx. 8 kg only device, approx. 13 kg packed in bag with accessories
