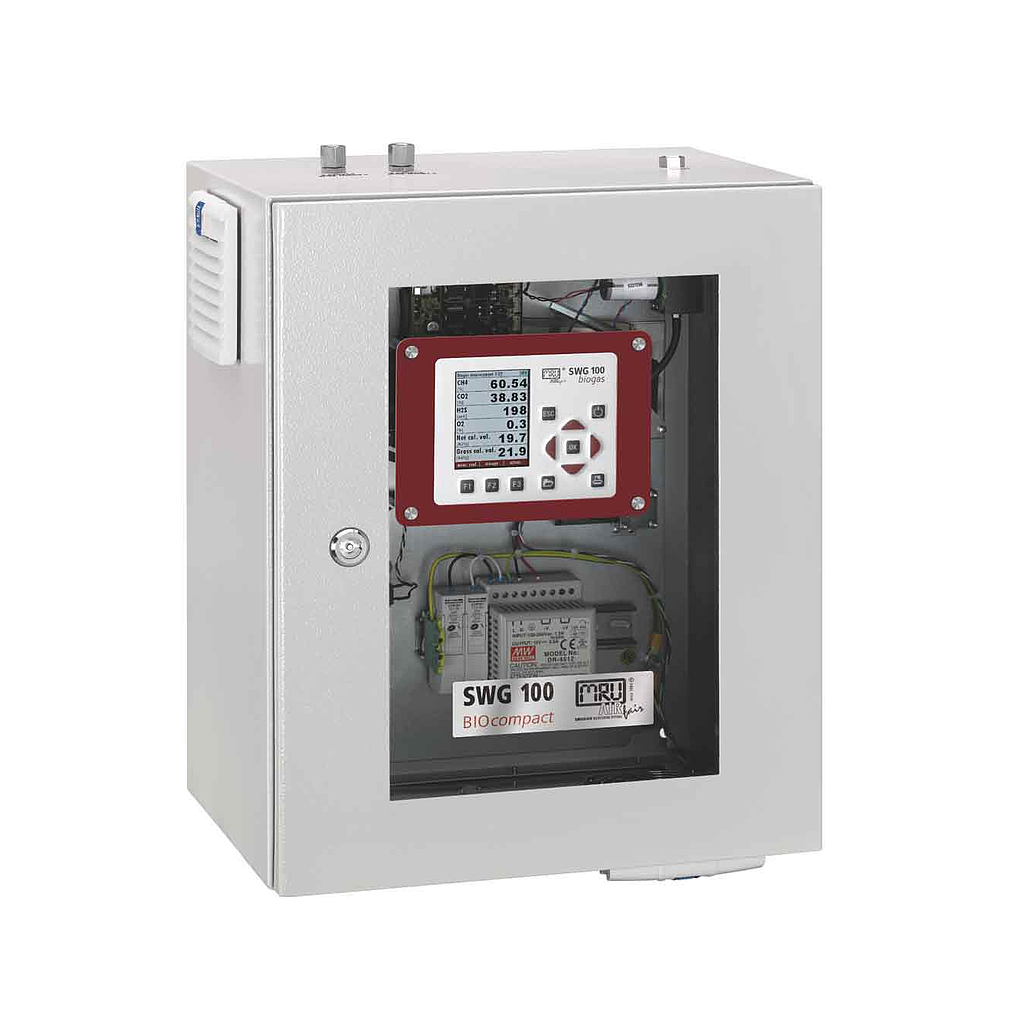

EiUK SWG100 BIOCOMPACT 农场AD植物的沼气分析仪

Measurements:

O2%:

Range: 0-25 %

Accuracy*: ± 0.2% Vol

Resolution: 0.01% Vol

Type: EC

Method: Sampled or on-demand

CH4%:

Range: 0-100%

Accuracy*: ± 0.3% Vol or 3 % m.v

Resolution: 0.01% Vol

Type: NDIR

Method: Sampled or on-demand

CO2%:

Range: 0-100%

Accuracy*: ± 0.3% Vol or 3 % m.v

Resolution: 0.01% Vol

Type: NDIR

Method: Sampled or on-demand

H2S:

Range: 0-5000 ppm

Accuracy*: ± 5 ppm

Resolution: 1 ppm

Type: EC

Method: Sampled or on-demand

Barometric Pressure: 850-1150 mbar

Calculated Values: CV gross/net 0-50 MJ3, MJ/Kg

Display: 3.5″ TFT color display, backlight

Keyboard: Tactile with password protected menu

Output communications/Industrial Interfaces:

Analouge: up to 12 x 4-20 mA outputs/input individually configurable

Alarms: 1 x system alarm and up to 6 alarm relay output , free contact 24 VDC/5A

Digital: Modbus RTU as standard, optional Ethernet, profinet, profibus DP and wed enable remote access

Data logging: Internal memory and SD card

Event Log: Record of Alarm/event to SD card

Sample:

Gas Inlet: Stainless steel gas gas fittings with 1/8″ ID Thread

Water Trap: Integrated water trap with auto-drain as standard

Filter: Teflon Particulate filter, internal housing in Viton

Flow: 40-60 l/hr

Pressure: Sample pressure from -100 to 300 mbar

Safety:  LEL% internal gas sniffer

Sample gas shut-off insolent valve

Stainless Steel flow orifice restriction

Physical:

Dimension: 400x500x300 (H x W x D) wall mounting

Weight/Protection: 14 KG, IP 54

Operating Temperature: +5 to 45 °C ( -10 to 45 °C with optional heater)

Heater: Cabinet Heater 200 W

Mains/Power: Universal 90240 VAC/ 47..63 Hz, 42W – 242 W with cabinet heater

Notes:

*After Calibration- Does not include calibration gas accuracy

** Due to continuous product improvements, specifications might change with-out prior notice
