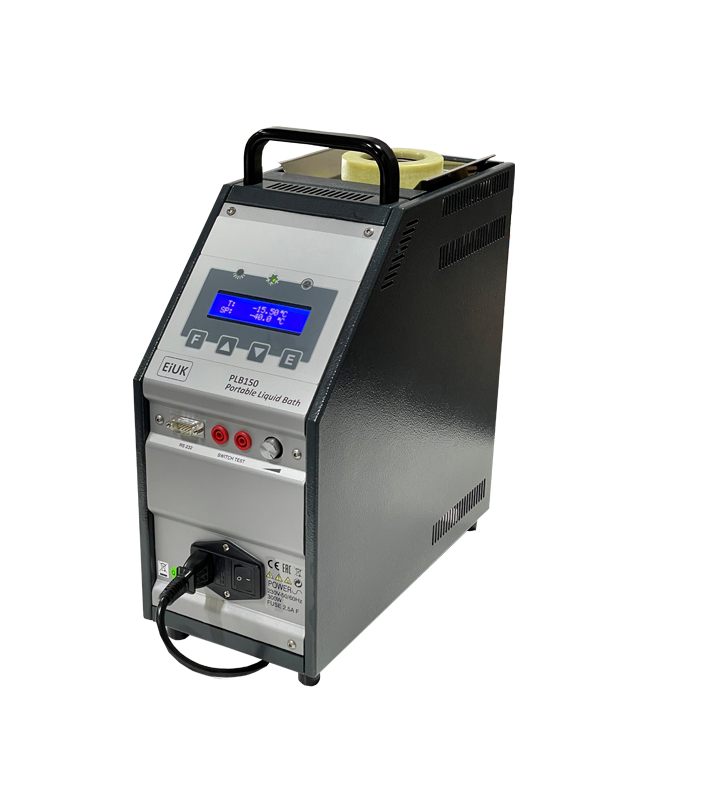

EiUK PLB 150 便携式液体恒温浴 (-18~140 °C)

Temperature Range:

@ 20ºC: -18 C to 140 C

@ 0ºC: -38 to 140°C

Stability:

As Liquid Bath: ± 0.01 °C

As Dry block: ± 0.01 °C

Uniformity as Liquid Bath:

Axial: ± 0.02 °C @ -10 °C

 ± 0.02 °C@ 0°C

 ± 0.01 °C @ 120 °C

Radial: ± 0.01 °C @ -10 °C

 ± 0.01 °C@ 0°C

 ± 0.02 °C @ 120 °C

Accuracy:

with Internal Sensor: ± 0.15 °C

with External Sensor SRS (*): ± 0.08 °C   ( TC version only)

Display :

Resolution: user-selectable 0.1 , 0.01 C

Units: user-selectable C, F,K

Calibration Volume:

As Liquid Bath: 54 x 150 mm

As dry block: 60 x 170 mm

Heating time: ambient to 120°C: 30 min ( include time to stability)

Cooling time: ambient to -10°C : 30 min (include time to stability)

Thermocouple Input (TC version):

Type: K,N,R,S,J,E

Range: 0 to 1300 °C

Accuracy: ± 1°C Include CJC error

Resolution: user-selectable 0.1 , 0.01 °C

RTD’S input ( TC version only):

Type: Pt 100 (3/4 wires)

Range: -100 C to 700 °C

Accuracy: ± 0.3 °C

Resolution: user-selectable 0.1 , 0.01 °C

General:

Computer interface: RS 232 as standard ( UBS adapter supplied as option) and EIUK software included

Switch Test: Yes

Ramp: Yes fully programmable

Weight: 8 Kg

Dimensions: 160x340x330 mm

Power Requirement: 115 o 230 V – 50/60 Hz

Power: 300 VA

 Notes: * Require SRS sensor and special UKAS matching calibration. Long term drift not included
