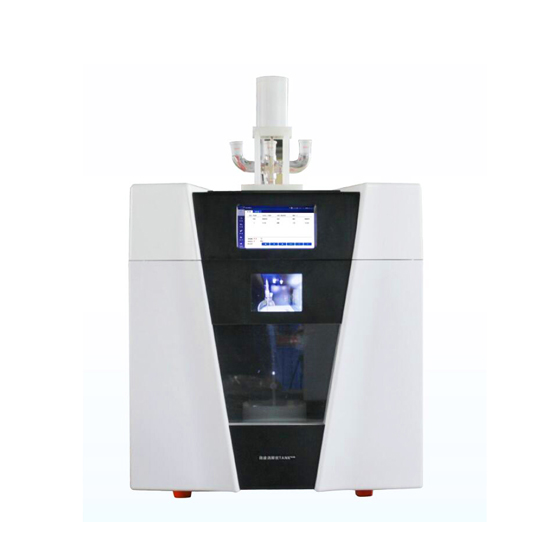

Bonnin MDES-12 微波消解萃取系统 (48L)

Cavity: 48L  Resonant Cavity

Microwave output: 1600W

Magnetron Type: Dual

Max.temperature: 305℃

Working Temp Max: 250℃

Temperature accuracy: ±0.1℃

Temperature sensor: Optical Fiber Sensor(directly)

Pressure Sensor: Idea gas

Vessel Pressure capacity: 80Mpa

Working pressure capacity: 3MPa

Vessel qty capacity: 1-12/batch

Vessels in package: 12sets

Vessel volume: 100mL

Inner Vessle Material: TFM

Outer Vessel M: aerospace composite

Vessel Cap Material: PFA

Microwave cavity: SS316 with 10 layer Telflon

Exhaust System: forced air cooling

Interface: USB, RS232

Wifi Module PC controlling: Standard for PC control

Power supply: 220VAC±10%  50Hz

Detection of abnormal voltage: Yes

Video monitoring: YES
