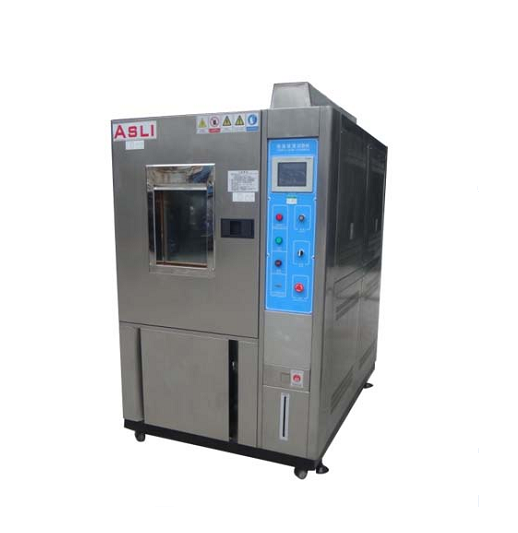

ASLI TH-1000-C 可编程温湿度试验箱

Internal Dimension

WxHxD (mm)

W1570XH1920XD1570

Internal Dimension WxHxD (mm)

W1000xH1000xD1000

 Temperature Range

 -20°C ~ +120°C

 Humidity Range

 20%~98%R.H. optional 5%~98%R.H with Dehumidifier System

 Analytic Accuracy/
Distribution uniformity
of temperature
and humidity

 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.

 Control Accuracy of Temperature and Humidity

 ±0.5℃; ±2.5% R.H.

Temperature Rising/Falling  Speed Rate

 Temperature rising approx. 0.1~3.0°C/ min;temperature falling approx. 0.3~1°C/min;

Inner and Outer Material

Material

Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.

 Cooling System

Air Cool

 Protection Devices

 Fuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection

 Compressor

 French Tecumseh Brand,Germany Bizer Brand

 Power

 AC220V 1ph  3 lines, 50/60HZ ,  AC380V 3ph  5 lines , 50/60HZ

Approx. Weight (Kg)

800
