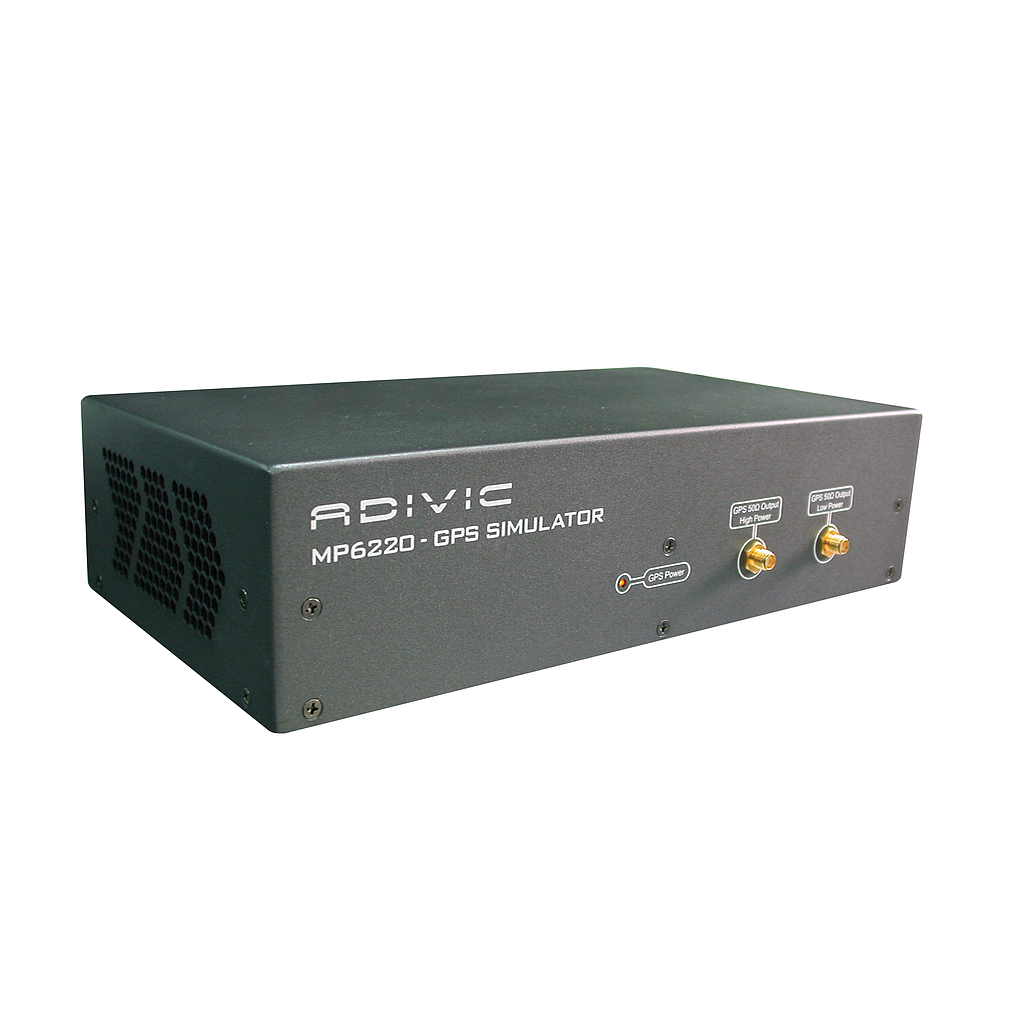

Adivic MP6220P 单通道和多通道GPS模拟器

Frequency Characteristics

Frequency Range: 1575.42 MHz

Warm-up time (typical): 30 minutes

Frequency Accuracy: ±100 ppb maximum

Temperature stability: ±100 ppb maximum

Aging (Per year): ±100ppb maximum

Aging (Per day): ±1 ppb maximum

Channels

Number: 1 CH~ 8 CH

Navigation data: GPS C/A @ 1.023 MHz with 50 bps

Modulation: BPSK

Spectral purity

Phase Noise @ 1 KHz oset: < -80 dBc/Hz

Harmonic: < -70 dBc

RF Output Characteristics

High power normal output level: -55 dBm to -90 dBm

Low power normal output level: -90 dBm to -160 dBm

Channel Attenuation range (refer normal output level: -31.5 dB to 0 dB)

Power level ranged from: -55 dBm to -145 dBm in 1 dB step, -145 dBm to -160 dBm in 0.5 dB step.

Amplitude Resolution: 1 dB step

Amplitude Accuracy: < ±1 dB

Output Impedance: 50 Ω

Voltage Standing Wave Ratio

1575.42 MHz: < 1.2

Overload protection on RF output

Maximum reverse RF power: 1 Watt maximum

Maximum DC input: ±25 VDC

Environmental

Operating temperature: 0 to 50 ℃

Relative Humidity: 10% to 90%

Storage temperature: -20 to 70 ℃

Relative Humidity: 5% to 95%
