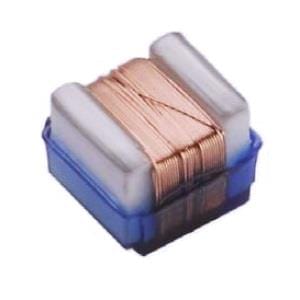

Abracon AISC-Q0402HQ-2N4K-T Wirewound IND 2.4nH 2A 42m?
制造商: Abracon Model: AISC-Q0402HQ-2N4K-T - 联系
Width: 0.76 mm
Height: 0.61 mm
Length: 1.27 mm
Q Minimum: 83
Shielding: Unshielded
Tolerance: 10 %
Inductance: 2.4 nH
Application: Automotive, Bluetooth, Broadband Network, Displays, Filtering, Video Cameras, W-LAN
Termination: Standard
Core Material: Ceramic
Mounting Style: PCB Mount
Test Frequency: 250 MHz
Termination Style: SMD/SMT
Maximum DC Current: 2 A
Maximum DC Resistance: 42 mOhms
Self Resonant Frequency: 14 GHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
