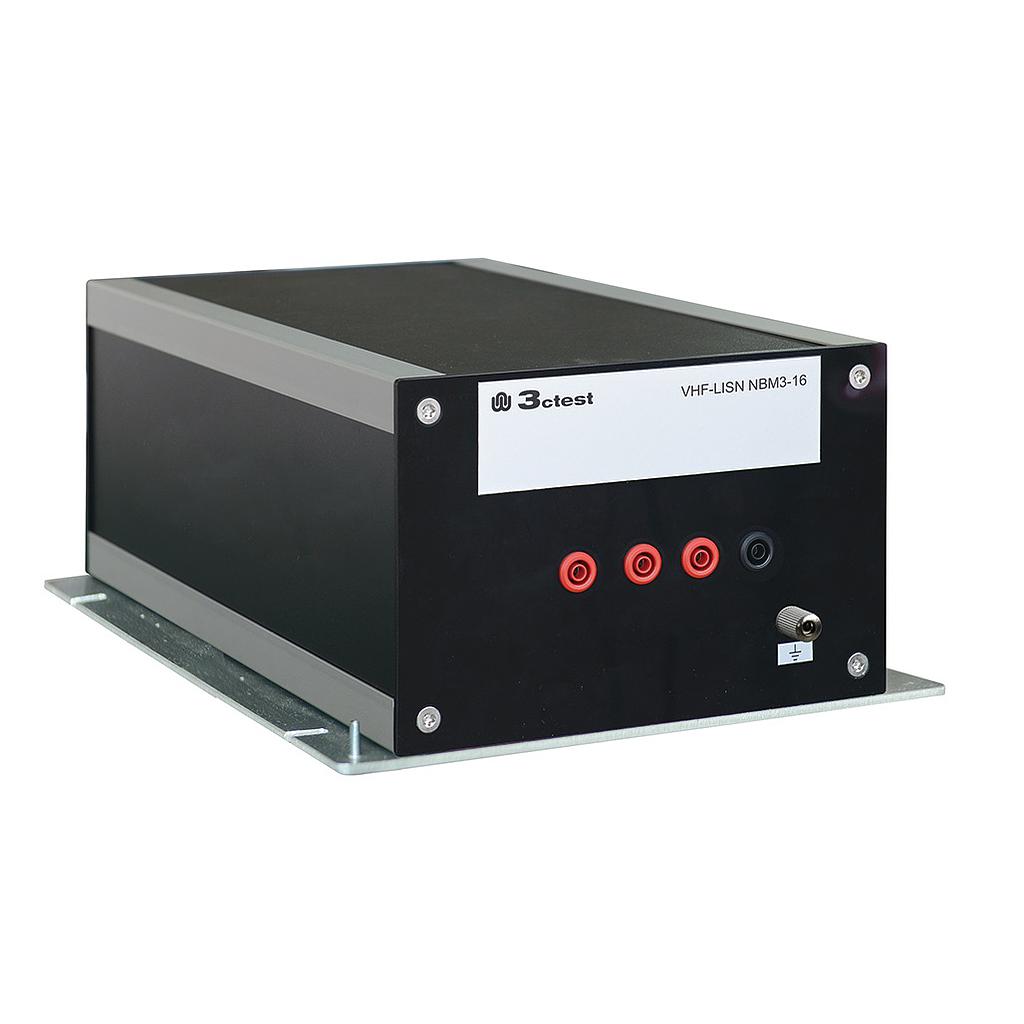

3ctest VHF-LISN NBM3-16 不平衡高频线路阻抗稳定网络 (30 MHz-300 MHz)

Standard: CISPR16-1-4 Ed.3.2

Frequency Range:  30 MHz-300 MHz

Max, AC Voltage（L-PE): 250 V

Max. DC Voltage（L-PE): 400 V

Max. Current: 16 A

EUT Port Type: 4 mm Banana(L/N/PE)

AE Port Type: 4 mm Banana(L/N/PE)

Input Impedance (EUT End):

L line 30 MHz to 300 MHz: 250Ω ± 20 %

N line 30 MHz to 300 MHz: 150Ω ± 20 %

PE line 30 MHz to 300 MHz: 90Ω ± 20 %

Phase（EUT End, L line, N line):

30 MHz to 108 MHz: 0 ± 11.5°

108 MHz to 300 MHz: 0 ± 25.0°

Isolation (AE-EUT):

30 MHz to 300 MHz: > 40 dB

- General Parameters:

Dimension: 250 mm (L) ×16 mm (W) ×10 mm（H）

Weight: 4.0 kg

Ambient Temperature: 15 ℃–35 ℃

Relative Humidity: 45%–75%

Atmosphere Pressure Range: 86 kPa–106 kPa
