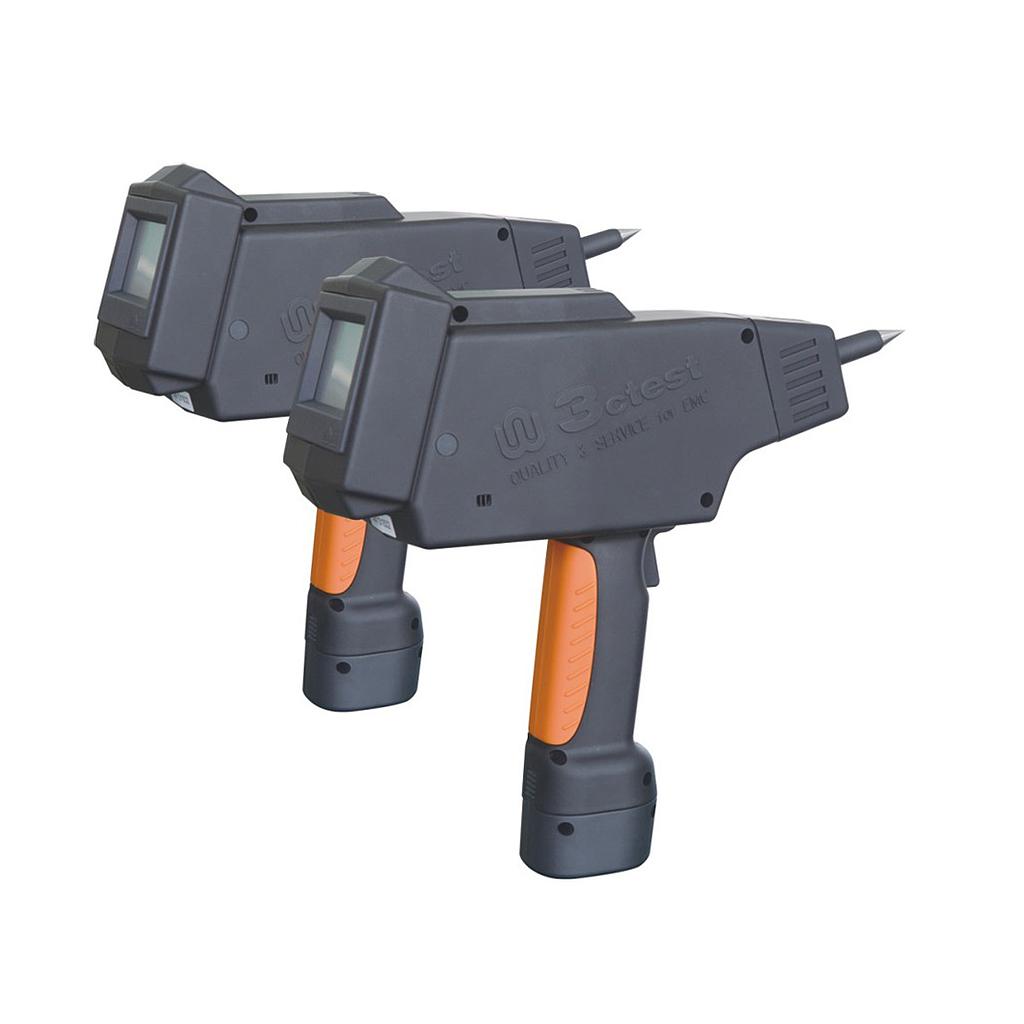

3ctest EDS 20H 手持式静电放电模拟器 (1 kV – 20 kV(±5%))

- Technical Parameters:

Contact Discharge: 1 kV – 20 kV(±5%)

Air Discharge: 1 kV – 20 kV(±5%)

Voltage Step: 100 V

Hold Time: >5 s

Polarity: Positive, negative

RC Module: LCD display

Humidity &Temperature: Built-in hygrothermograph, for recording and protection

Repetition Frequency: Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz

Trigger Mode: Manual / automatic

Pulse: 1 – 9,999

Contact Discharge: 150 pF / 330 Ω

Summary Procedure: Test according to different standard levels

Rise Time: 0.8 ns ± 25%

Quick Start Test Program: Simple and easy to reset data online

Evaluation Procedure: Contact discharge test at 20 Hz,evaluate the test points of DUT

Standard Test Procedure: According to IEC / EN 61000-4-2

- General Parameters:

Operating Temperature: 15 ℃-35 ℃

Operating Humidity: 30%-60%

Operating Air Pressure: 86 kPa-106 kPa

Operating Power: 100 V / 240 V (±10%); 50 / 60Hz;

Default configuration: 220 V, 50 Hz (for Mainland China)

Weight: Approx. 8.5 kg

Weight (EDS gun): Approx. 1.8 kg
