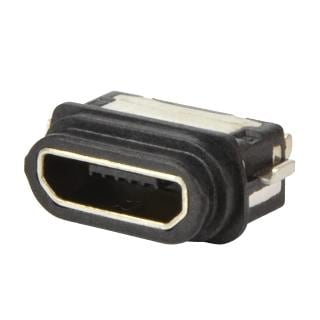

Micro USB Type B Connectors USB jack 2.0, micro B type, IP67, 5 pin, horizontal, 15 uin plating, mid mount, T&R pckg Same Sky (formerly CUI Devices) UJ2-MIBH-3-MSMT-TR-67
Hãng sản xuất: Same Sky (formerly CUI Devices) Model: UJ2-MIBH-3-MSMT-TR-67 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Color: Black
Gender: Receptacle (Female)
Standard: USB 2.0
IP Rating: IP67
Unit Weight: 2 g
Current Rating: 5 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Voltage Rating: 30 VDC
Contact Plating: Gold
Insulator Color: Black
Number of Ports: 1 Port
Contact Material: Polybutylene Succinate (PBS)
Termination Style: SMD/SMT
Number of Contacts: 5 Contact
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
