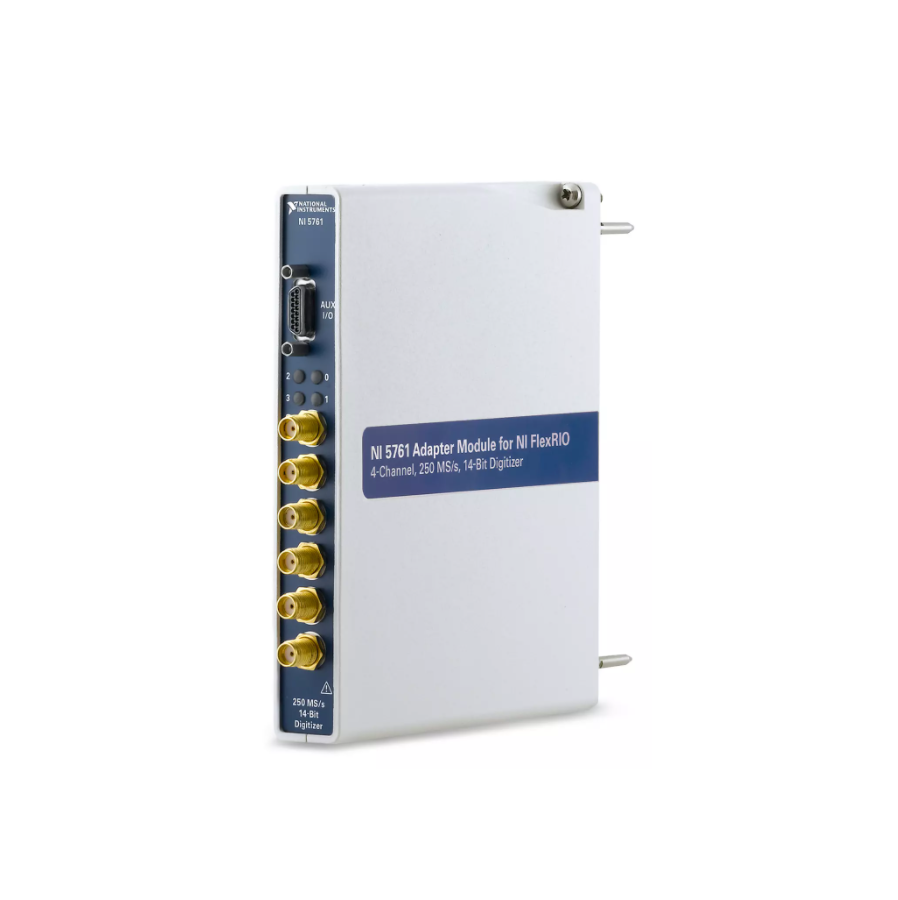

Digitizer Adapter Module for FlexRIO NI NI-5761 (4 Channels, 250 MS/s, DC, Virtex-5 Kintex-7)
Hãng sản xuất: NI Model: NI-5761 P/N: 781287-02 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Number of Voltage Input Channels: 4
Maximum Sample Rate: 250 MS/s
Analog Input Resolution: 14 bits
Analog Input Coupling: DC
Analog Input Bandwidth: 500 MHz
Analog Input Voltage Range: -0.6 V to 0.6 V
Compatible FPGA: Virtex-5 Kintex-7
Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.
Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.
Datasheet
