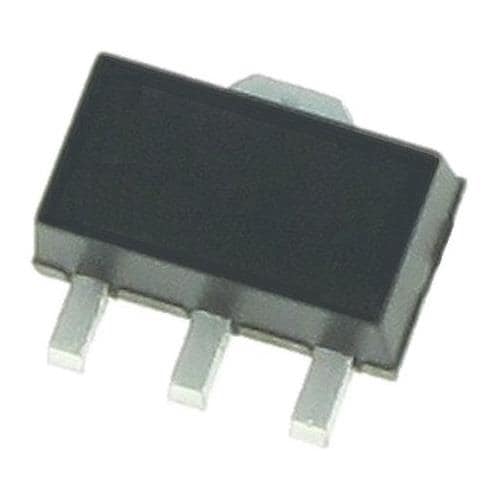

FET 500V 1KOhm Microchip Technology LND150N8-G
Hãng sản xuất: Microchip Technology Model: LND150N8-G - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Width: 2.6 mm
Height: 1.6 mm
Length: 4.6 mm
Fall Time: 1.3 us
Rise Time: 0.45 us
Technology: Si
Unit Weight: 52.800 mg
Channel Mode: Depletion
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 N-Channel
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 1.6 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 0.09 us
Typical Turn-Off Delay Time: 0.1 us
Id - Continuous Drain Current: 30 mA
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 1 mS
Rds On - Drain-Source Resistance: 1 kOhms
Vds - Drain-Source Breakdown Voltage: 500 V
Vgs th - Gate-Source Threshold Voltage: 800 mV
