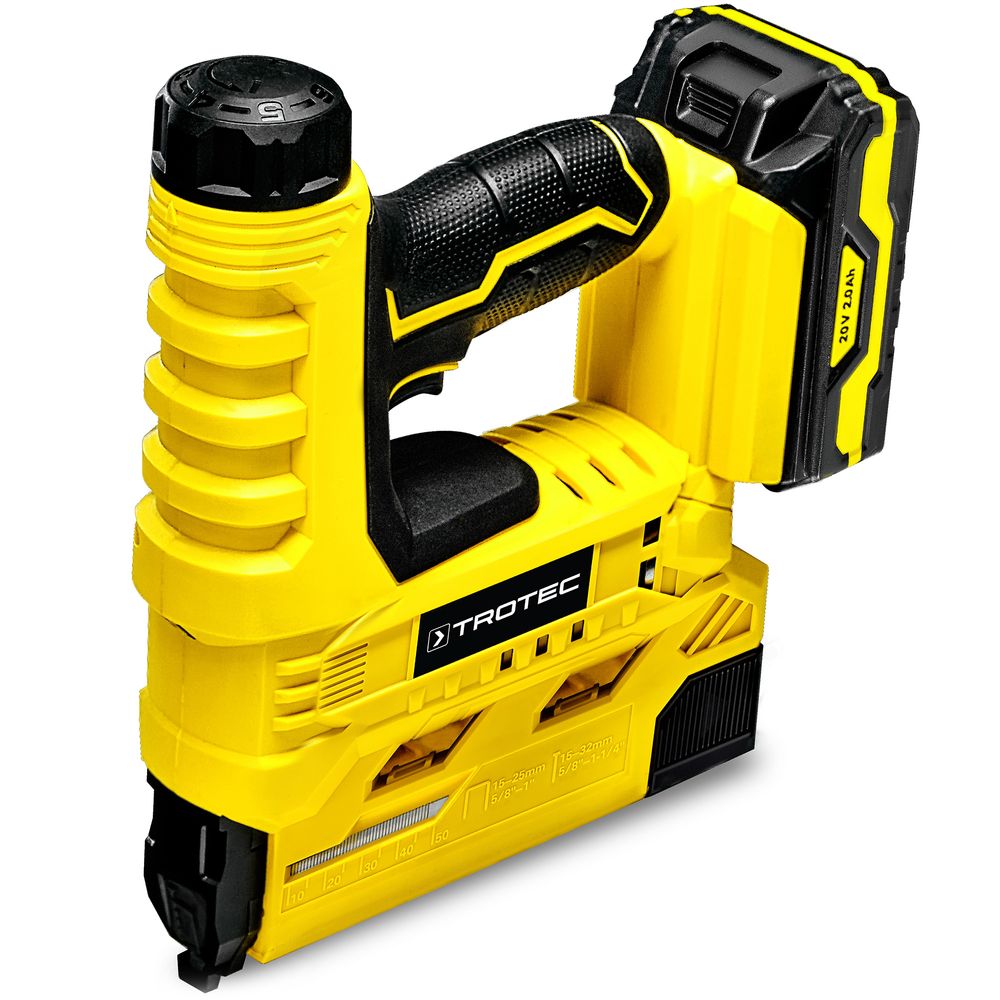

Trotec PTNS 10-20V Tacker (30 min-1)

Technical data:

Firing rate [min-1]: 30

Holding capacity of the magazine: 100 staples of type 55, 50 wire nails of type 47

Staples:

Type: 55

Staple length: 15 - 25 mm

Staple width [mm]: 6

Thickness [mm]: 1.2

Wire nails:

Type: 47

Wire nail length: 15, 20, 25, 32 mm

Wire nail width [mm]: 0.8

Sound values according to EN 60745:

Sound pressure level [dB(A)]: 84.1

Uncertainty (K) [dB(A)]: 3

Sound power level [dB]: 95

Vibration information according to EN 60745:

Vibration emission value (ah) [m/s²]: 2.879

Uncertainty K: 1.5

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 2

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 65

Nominal current consumption [mA]: 2400

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 70

Width (packaging excluded) [mm]: 200

Height (packaging excluded) [mm]: 225

Weight:

(packaging excluded) [kg]: 2.5
