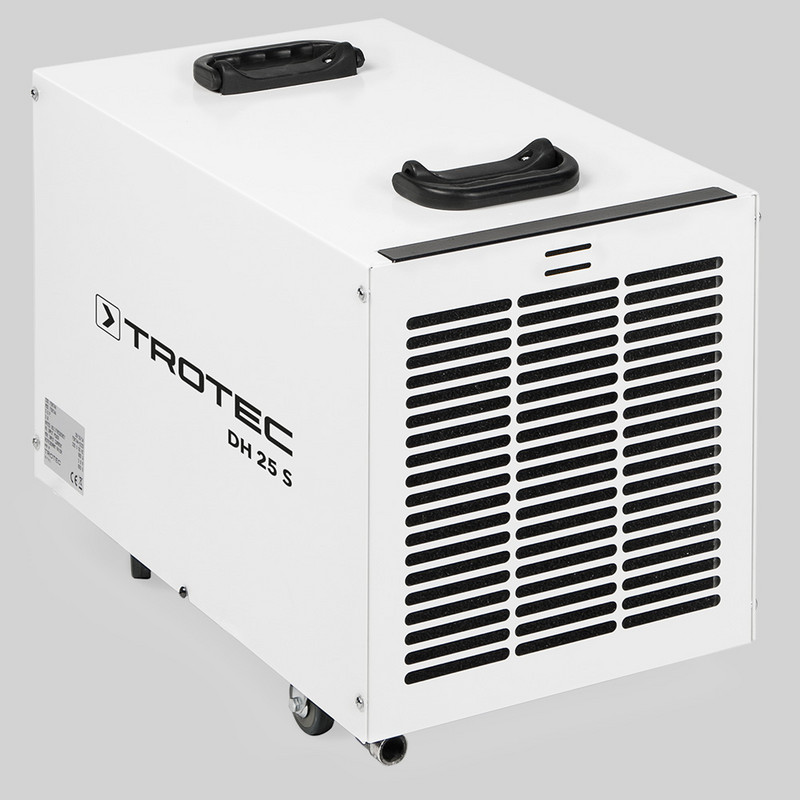

Trotec DH 25 S 산업용 콘덴서 건조기 (40 l/24h; 450 m³/h)

  • 생산업체:Trotec
    Model: DH 25 S
    P/N: 1.125.000.204
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Dehumidification performance / 24 h at 30 °C / 80 % RH: 40 l

Amount of air : 450 m3/h

Max. permissible pressure : 2.5 MPa

Pressure suction side : 1.0 MPa

Pressure outlet side : 2.5 MPa

Operating range (temperature) : 1 to 35 °C

Operating range (relative humidity):

below 30 °C: 35 to 93 % RH

30 °C to 32 °C: 35 to 90 % RH

32 °C to 35 °C: 35 to 70 % RH

Mains connection : 220 – 240V ~ 50 Hz

Power input : 0.7 kW

Nominal current : 3.1 A

Peak starting current : 16 A

Fusing : T 10 A 250 V

Type of protection : IPX0

Refrigerant : R290

Amount of refrigerant : 152 g

GWP factor: 3

CO2 equivalent : 0.000456 t

Sound level at a distance of 3 m : 51 dB(A)

Minimum distance to walls or other objects:

A: top: 50 cm

B: rear: 50 cm

C: side: 50 cm

D: front: 50 cm

Length x width x height : 420 x 350 x 580 mm

Weight : 34 kg

Details

Datasheet
