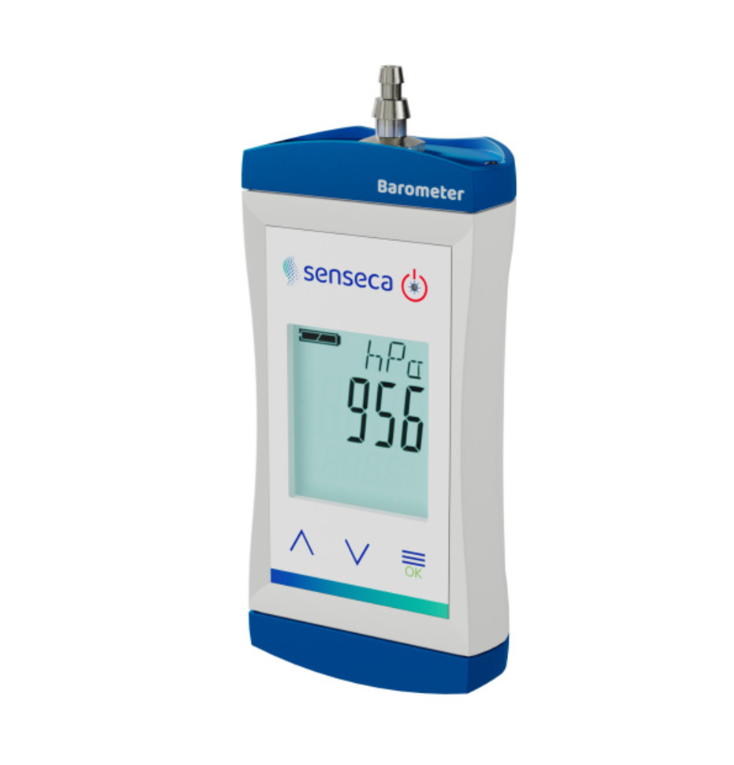

Senseca ECO 240-2-ST6 압력계 (0 ... 14000 hPa (mbar))

  • 생산업체:Senseca
    Model: ECO 240-2-ST6
    P/N: 486989
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Pressure connection: G1/8 inch port incl. quick connector for tube with outer-Ø 6 mm

Set-Option: Device in carton box, testprotocol, batteries, manual, without temperature probe


Additional functions: Sea level correction, NULL/Tare function, AVR: Averaging over 2 s / 5 s / 10 s

Adjustment: Zero point and slope

Connections: one tube connection, interchangeable with G1/8 universal port

Dimensions: 108 x 54 x 28 mm without pressure connection

Display: 3-line segment LCD, additional symbols, illuminated (white, illumination time adjustable), overhead display on key press

Display units: hPa, mbar, bar, PSI, mmHg (Torr)

Error: max. (-20 ... 50 °C) ± 0.1 % FSS ± 0.5 % of value

Housing material: Break-proof ABS housing

Max. overload: 20000 hPa abs.

Measurement rate: Slow: 2.5 measurements per second, Fast: 25 measurements per second

Measurements: Absolute pressure

Operating conditions: -20 ... +50 °C; 0 to 95 % r.h. temporarily 100 % r.h.)

Precision typ. @ 25 °C: ± 0.02 % FSS +/-0.1 % of value (@ 25 °C)

Protection type: IP 67

Standard functions: Min / Max / Hold, auto-Power-Off-function / if activated, the product switches off automatically

Storage temperature: -20 ... +70 °C

Weight: 140 g incl. battery

Measuring range: 0 ... 14000 hPa (mbar)

Current supply: 2 x AA batteries

Working temperature -20 ... +50 °C

Details

 Datasheet


Manual
