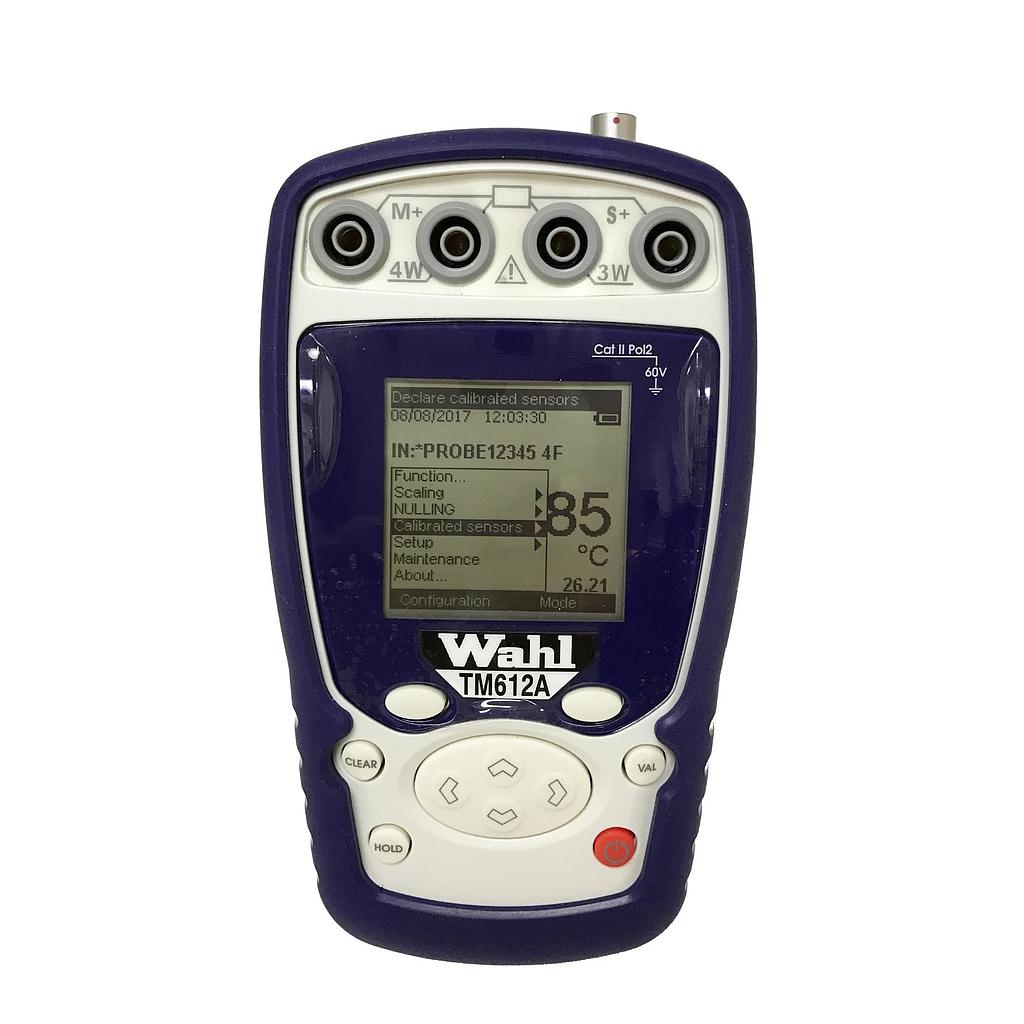

Palmer Wahl TM612A Digi-Stem® RTD 온도계 (RTD measurement)

Resistance

Range: 400 Ω; 3600 Ω

Resolution: 10 mΩ; 100 mΩ

Accuracy / 1year: 0.012% RDG + 10 mΩ; 0.012% RDG + 100 mΩ

Size: 6.18 x 3.34 x 1.77 in (157 x 85 x 45 mm)

Weight: 10.8 ounces (306 g)

Display: 160 x 160 pixel liquid crystal graphical display

with backlite. Display of result as table of values or trend curve

Power supply: 4 AA batteries 1.5 V or rechargeable Ni-Mh batteries with internal charger in option

Communication ports: USB

Storage capacity: 10.000 data with date and time into one or

several acquisition bursts

Reference range: 23°C ± 5°C (RH: 45 to 75 % w/o condensing)

Operating reference range: -10 to 50°C (RH: 20 to 80 % w/o condensing)

Limit operating range: -15°C to +55°C (RH: 10 to 80 % w/o condensing) (70% at 55°C)

Storage temperature limits: -30°C to +60°C

Maximum height: 0 to 2.200 m

IP protection: IP54
