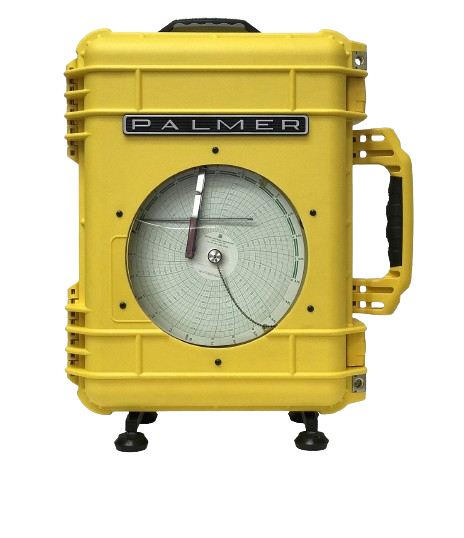

Palmer Wahl 3R3 Temperature Recorder (12 inch; Flush Mount)

Chart Recorder Type: Pressure & Temperature System

Chart Recorder Size: 12 inch Pelican Case

Chart Recorder Mounting Style: Flush Mount

Arc Line: 6-3/8 inch

Case: Pelican® brand case

Available Case Colors: Black (Standard), Orange, Yellow

Maximum Number of Total Systems: 3

Pressure Process Connection: Standard: 1/4 inch NPT for pressure ranges at or below 10,000 PSI., Optional: 1/2 inch NPT

Number of Temperature Systems: 1, 2

Mercury Filled °C Temperature Ranges:

0° to 60°C

0° to 100°C

0° to 120°C

0° to 150°C

0° to 200°C

0° to 250°C

0° to 300°C

0° to 350°C

0° to 400° C

Pen Colors: Standard: Red, Blue, Green. Optional: Black

Pressure Accuracy: ± 1/2 chart graduation for pressure measurement

Dimensions: 19.78 in. x 15.77 in. x 7.41 in. (50.2 x 40.1 x 18.8 cm). Does not include feet or pedestal
