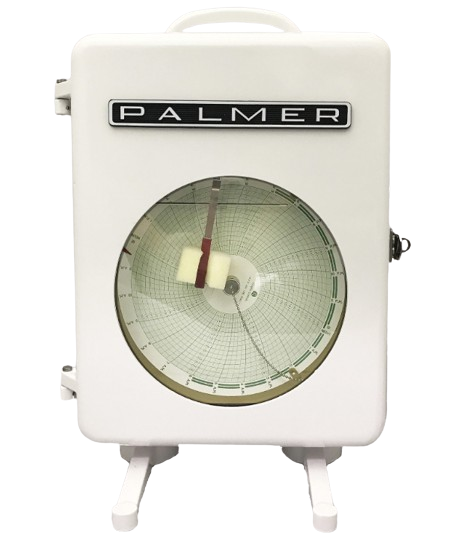

Palmer Wahl 225 Temperature Circular Chart Recorders (12 inch; Portable)

Chart Recorder Type: Temperature System

Chart Recorder Size: 12 inch Aluminum

Chart Recorder Mounting Style: Portable

Arc Line: 6-3/8 inch

Case: Heavy die-cast aluminum

Available Case Colors: White Gloss Powder Coat, standard. Black Matte Powder Coat or Gray Gloss Powder Coat available upon request

Number of Temperature Systems: 1 or 2

Mercury Filled °C Temperature Ranges:

0° to 60°C

0° to 100°C

0° to 120°C

0° to 150°C

0° to 200°C

0° to 250°C

0° to 300°C

0° to 350°C

0° to 400° C

Pen Colors: Standard: Red, Blue, Green. Optional: Black

Accuracy: ± 1 chart graduation

Dimensions: W: 13-1/6 in. x H: 15-13/16 in. x D: 4-7/8 in. (W: 331.8 mm x H: 401.6 mm x D: 123.8 mm)
