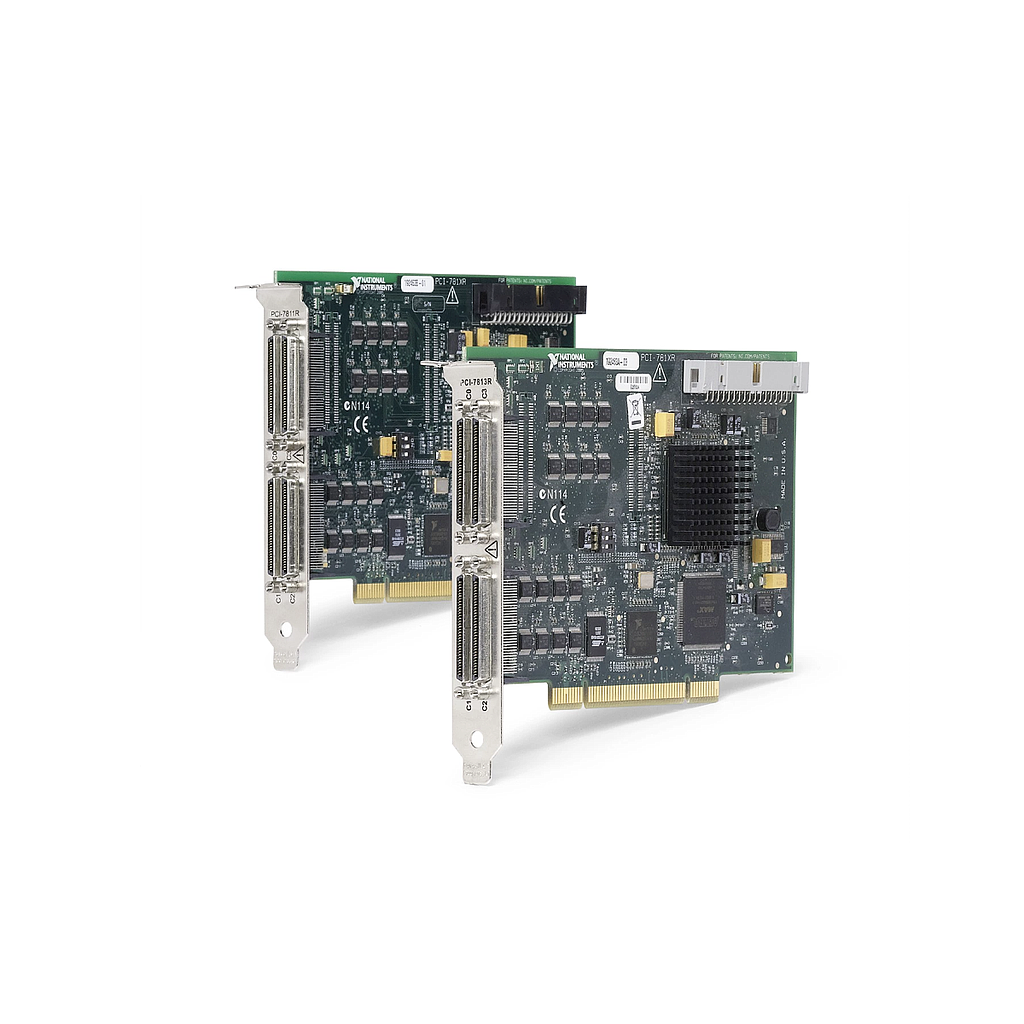

NI PCI-7813 Digital Reconfigurable I/O Device (Virtex-II 3M, 160-Ch, DRAM-0MB)
생산업체: NI Model: PCI-7813 P/N: 779370-01 - 연락처
Bus Connector: PCI
FPGA: Virtex-II 3M
Number of Bidirectional Digital Channels: 160
Number of External Clock Inputs: 0
Maximum Clock Rate: 40 MHz
Digital I/O Logic Levels: 3.3 V 5 V
Dynamic RAM (DRAM): 0 MB
Configures digital lines as inputs, outputs, counters/timers, or custom communication protocols using FPGA-based logic.
The Digital Reconfigurable I/O (RIO) Device features user-programmable FPGA for onboard processing and flexible I/O operation. You have complete control over the synchronization and timing of all signals and operations along with custom onboard decision-making that executes with hardware-timed speed and reliability. You can configure user-defined hardware for a wide variety of applications, such as custom digital DAQ, high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) test, custom digital communications protocols, bit error rate testing, and other applications that require precise timing and control.
Datasheet
