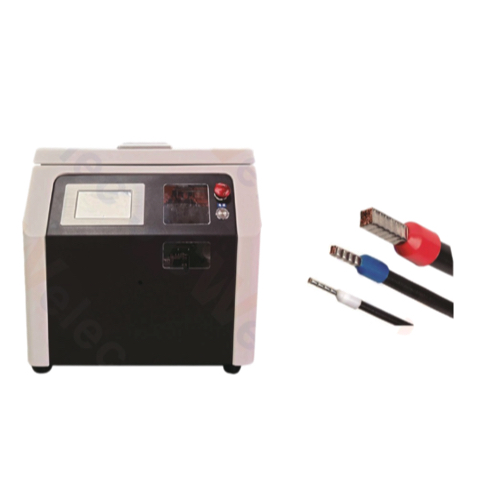

JCW JCW-F3 Ferrule Stripping Crimping Machine (15 mm, 40 mm, 6-12 mm)

  • 생산업체:JCW
    Model: JCW-F3
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Conductor cross-section: 0.35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 mm² [changing vibrate bowl]

Stripping length: Inner wire: Max 15 mm, Outer sheath of multicore cable: Min 40 mm

Crimping shape: Quadrilateral/Hexagonal/[Customizable]

Crimping length: 6-12 mm

Cycle time: 2.5 seconds, 1000-1300 pcs/hr

Customize logo: Yes

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Data library: 100 programs

Rated power: 400 W

Air supply: 0.6-0.8 MPa (clean and dry air)

Power supply: AC 110V-220V±10%, 50/60 Hz

Dimensions: L 430 x W 505 x H 425 mm

Weight: 68 KG
