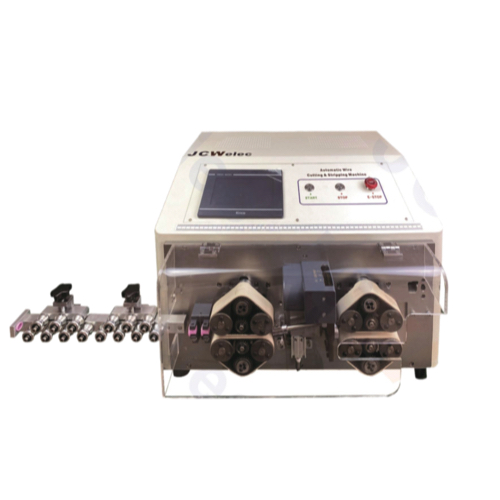

JCW JCW-CS13 Belt Feed Automatic 8mm Multicore Cable Cut and Strip Machine (2-8 mm, 0.1-999999 mm)

  • 생산업체:JCW
    Model: JCW-CS13
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Function: Single wire, Round multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer, Program names

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cable size: 2-8 mm O.D.

Cutting length (L): 0.1-999999 mm

Cutting length accuracy: 0.002 x L

Outer jacket stripping length:

Leading (right) side: 250 mm

Trailing (left) side: 60 mm

Inner core stripping length: 30 mm at dual-ends

Production rate: 1500 pcs/h by 100mm wire length [multi-layer stripping]

Compatible peripherals: Cable dereeler, robot arm, conveyor belt

Power supply: AC 110V-220V±10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: L 650 x W 560 x H 450 mm

Weight: 75KG
