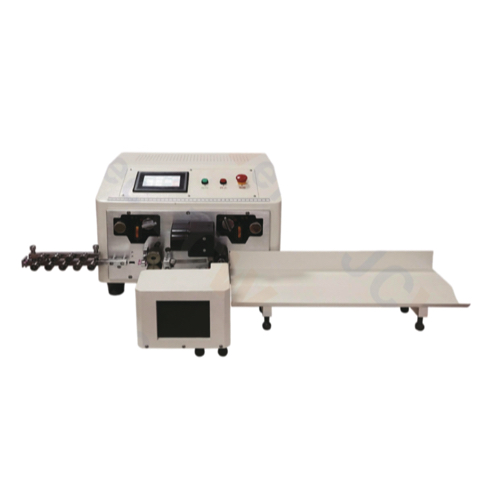

JCW JCW-CS09 Automatic Wire Cutting Stripping and Twisting Machine (0.1-3 mm²)

  • 생산업체:JCW
    Model: JCW-CS09
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Function: Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Twist force

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Capacity: 2 wires, 0.1-3 mm² [approx 3 mm O.D.]

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Production rate:

10000 pcs/h by 100mm wire length [twist OFF]

7000 pcs/h by 100mm wire length [twist ON]

Display: 4.3" color touchscreen, English/Chinese [other languages on request]

Power supply: AC 110V-220V±10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: L 460 x W 700 x H 350 mm

Weight: 42 KG
