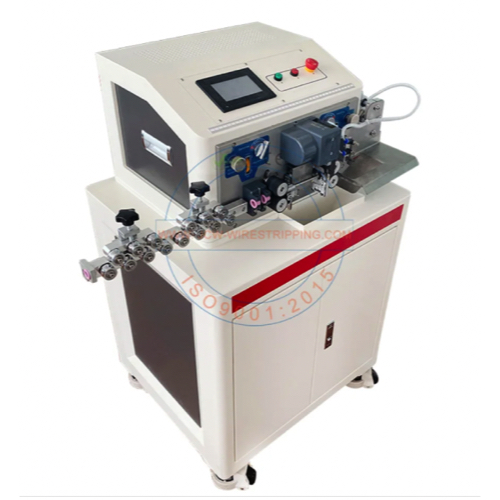

JCW JCW-CS08T Freedstanding 6mm OD Multicore Cable Cut Strip Machine (5 mm, 0.1 - 999999 mm)

  • 생산업체:JCW
    Model: JCW-CS08T
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer

Raw material: PVC, Teflon, Silicone, Low halogen, Fiber glass, etc

Cable size: 5 mm O.D.

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Single wire: YES

Multi-core cable: Round

Outer jacket stripping length:

Leading (right) side: 250 mm [partial stripping]

Trailing (left) side: 100 mm [partial stripping]

Inner core stripping length: 30 mm at dual-ends

Middle strip: 13 sections

Production rate: 1300 pcs/h by 100mm wire length [multi-layer stripping]

Data library: 100 programs

Display: 4.3" color touchscreen, English/Chinese [other languages on request]

Compatible peripherals: Cable unwinder, robot arm, conveyor belt

Power supply: AC 110-220 V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)


Machine: L 460 x W 470 x H 950 mm

Wire straightener: 350 mm

Weight: 78 KG


• Freestanding floor model

• Scrap jacket collector keeps clean workshop

• High performance on processing multicore cable

• High-speed up to 1300 pcs/h with stripping double ends

• Round multi-conductor cable up to 5mm OD

• Applicable to thermal transfer printer

• Automated length calibration

• Fully programmable model

• Cable run-out sensor
