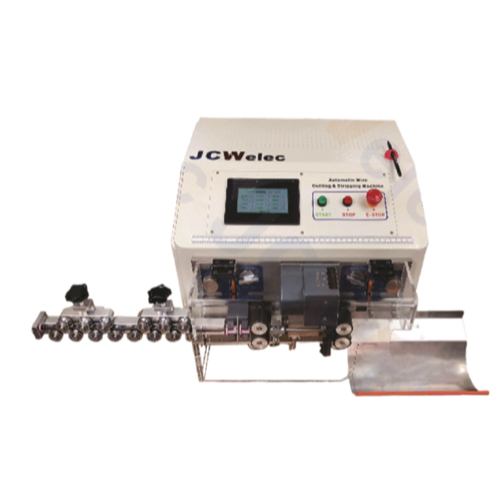

JCW JCW-CS08 6mm O.D. Sheathed Cable Automatic Multi-layer Cutting and Stripping Machine (6 mm, 0.1-999999 mm)

  • 생산업체:JCW
    Model: JCW-CS08
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Function: Single wire, Round multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cable size: 6 mm O.D.

Cutting length (L): 0.1-999999 mm

Single wire: YES

Outer jacket stripping length: Leading (right) side: 250 mm [partial stripping], Trailing (left) side: 100 mm [partial stripping]

Inner core stripping length: 30 mm at dual-ends

Production rate: 1300 pcs/h by 100mm wire length [multi-layer stripping]

Compatible peripherals: Cable unwinder, robot arm, conveyor belt

Power supply: AC 110V-220V±10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: L 460 x W 470 x H 350 mm

Weight: 38KG
