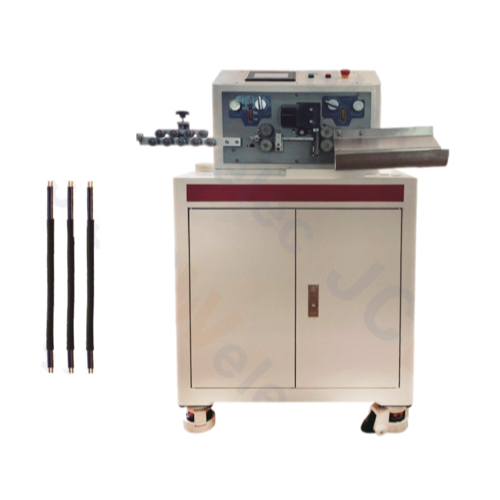

JCW JCW-CS03M Flat Cable Cutting and Stripping Machine (0.1-999999 mm)

  • 생산업체:JCW
    Model: JCW-CS03M
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Function: 2 cores flat cable, Cable measuring, Cut into length, Outer jacket and inner wire stripping, Wire lack sensor, Length correction, Data library

Capacity: 2 x 3.0 mm²

Cutting length accuracy: 0.002 x L

Cutting length (L): 0.1-999999 mm

Middle strip: 13 sections

Outer strip length: Front (right) side: 100 mm, Rear (left) side: 30 mm

Production rate: 1800 pcs/h by 100mm wire length

Compatible peripherals: Wire prefeeder, robot arm, conveyor belt

Power supply: AC 110V-220V±10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: L 700 x W 680 x H 1050 mm

Weight: 75KG
