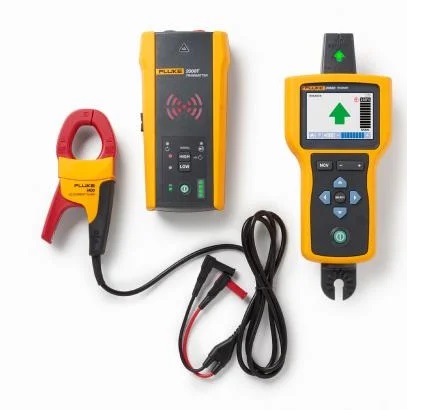

FLUKE FLUKE-2062 Advanced Pro Wire Tracer Kit

Includes:

Fluke 2062R Advanced Pro Wire Tracer Receiver with Smart Sensor™

Fluke 2000T Advanced Wire Tracer Transmitter

i400 AC Current Clamp

Fluke 2000ACC Test Lead Accessory Kit for 2052/2062

Smart strap magnetic hanger

Premium hard carrying case

Batteries

Quick reference guide

2062R Receiver

Measurement category: CAT IV 600 V

Operating voltage: 600 V AC/DC

Operating frequency: Energized: 6.25 kHz; De-Energized: 32.768 kHz

Signal indications: Numeric, bar graph display and audible beep

Response time: Smart Sensor: 500 ms; Tip Sensor (Energized/De-Energized): 500 ms; NCV: 500 ms;  Battery monitoring: 5 s

Range detection (open air)

+ Smart Sensor Direction Indication Mode

≤15 cm (6 in), 230 V AC,

high mode, sensitivity level 2

+ Tip Sensor: Energized

Max distance via air: up to 6.1 m (20 ft)

Pinpointing: approx. 5 cm (1.97 in)

+ Tip Sensor: De-Energized

Max distance via air: up to 4.5 m (14.7 ft)

Pinpointing: approx. 5 cm (1.97 in)

+ NCV (40 Hz to 400 Hz)

Max. sensitivity: 90 V up to 2 m

Min. sensitivity: 600 V up to 1 cm

2000T Transmitter

Measurement category: CAT IV 600 V

Operating voltage: 600 V AC/DC

Operating frequency: Energized/Loop: 6.25 kHz; De-Energized: 32.768 kHz

Signal indications: LEDs and audible beep

Response time: Line voltage monitoring: 1 s; Battery voltage monitoring: 5 s

Current output of signal (typical): Energized circuit:

+ Energized circuit:

High mode: 60 mA rms

Low mode: 30 mA rms

+ De-energized circuit:

High mode: 110 mA rms

Low mode: 40 mA rms

Loop mode with test leads: 160 mA rms

Loop mode with i400 AC Current Clamp: 385 mA rms

Signal voltage output (nominal):

+ Energized circuit:

High mode: 14 W @ 230 V ac/50 Hz, 3.33 kΩ @ 230 V ac

Low mode: 4.6 W @ 230 V ac/50 Hz, 11.5 kΩ @ 230 V ac

+ De-energized circuit:

High mode: 31 V RMS, 140 Vp-p, 0.86 W @ 1 kΩ load

Low mode: 27.5 V RMS, 120 Vp-p, 0.1 W @ 1 kΩ load

Loop mode with test leads: 32 V RMS, 140 Vp-p, 0.87 W @ 1 kΩ load

Loop mode with i400 AC Current Clamp: 31 mV, 0.89 W @ 1 Ω load

i400 AC Current Clamp

Measurement category: CAT IV 600 V, CAT III 1000 V

Operating voltage: 1000 V AC

Current range: 400 A

Basic accuracy: 2 % + 0.06 A (45 Hz to 400 Hz)

Mechanical: 2000ACC Test Lead Accessory Kit

Includes:

2x 1 m test leads (red, black),

1x 7 m test lead (green),

2x test probes (black),

2x alligator clips (red, black),

2x outlet blade adapters (red, black),

2x outlet round adapters (red, black)

Measurement category: CAT IV 600 V (test leads), CAT II 1000 V (test probes), CAT IV 600 V (alligator clips), CAT II 300 V (outlet adapters)

Operating voltage and current:

600 V, 10 A max. (red/black leads), 600 V, 10 A max. (green lead), 1000 V, 8 A max. (black probe)

600 V, 10 A max. (alligator clips), 300 V, 10 A max. (outlet adapters)

Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)

Operating humidity:

10 °C to <30 °C (95 %: 50 °F to <86 °F), 30 °C to <40 °C (75 %: 86 °F to <104 °F),

40 °C to <50 °C (45 %: 104 °F to <122 °F)

Storage temperature and humidity: 0 °C to 60 °C (32 °F to 140 °F),

Operating altitude: 2000 m (6561 ft)

Pollution degree: 2

Water and dust resistance: IP 20

Drop proof: 1 m (3.28 ft)
