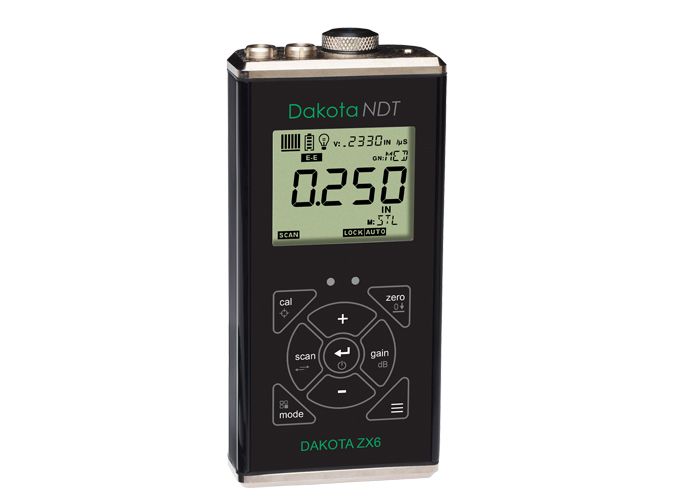

Dakota ZX6 Corrosion Thickness Gauge (PE: 0.63 - 914.4mm; EE: 2.54 - 152.4mm)

  • 생산업체:Dakota
    Model: ZX6
    P/N: Z-305-0003
    • 견적요구 Request a Quotation
  • 연락처
    • 카트담기
    • 견적요구
  •  할인 받으려면 전화하십시오

    핫라인: (+84) 969950220

    전화번호+84 (24) 62923267

Display Mode:

Material thickness digits display: ✓

Measurement Range: PE: 0.63 - 914.4mm (0.025 - 36");  EE: 2.54 - 152.4mm (0.100 - 6.0“)

Measurement Resolution: 0.01mm (0.001”)

Velocity Calibration Range: 305 - 18,542m/s (0.0120 - 0.7300in/μs)

Additional Features:

Velocity Settings: -

High Speed Scan Mode:

Differential Mode:

Limit alarm mode:

Memory and Data Logging: -

Transducer Probe Type: Dual element

Transducer Frequency Range: 1 - 10MHz

V-path / dual path error correction: Automatic

Probe Zero: Manual (via integrated probe disk)

Display: 12.7mm (1/2") 4.5 digit LCD

Units (selectable): mm or inches

LED Backlight: on/off/auto

Repeatability / Stability Indicator: ✓

Operating Temperature: -30 to 75ºC (-22 to 167ºF)

Power Supply: 2 x AA batteries

Battery Life: Alkaline – 45 hrs and Nicad – 23 hrs

Gauge Weight: 312g (11oz) - including batteries

Gauge Dimensions: 63.5 x 131 x 31.5mm (2.5 x 5.17 x 1.24”)

Packing List: Unit, Selectable Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable included with data logging gauges. PC software available for download from our website.
