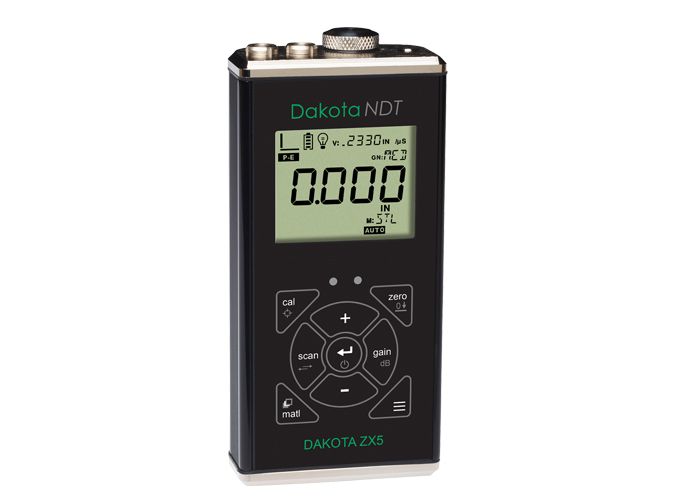

Dakota ZX5 Corrosion Thickness Gauge (PE: 0.63 - 914.4mm)

Display Mode:

Material thickness digits display: ✓

Measurement Range: PE: 0.63 - 914.4mm (0.025 - 36")

Measurement Resolution: 0.01mm (0.001”)

Velocity Calibration Range: 305 - 18542m/s (0.0120 - 0.7300in/μs)

Additional Features:

Velocity Settings: -

High Speed Scan Mode: ✓

Differential Mode: ✓

Limit alarm mode: ✓

Memory and Data Logging: -

Transducer Probe Type: Dual element

Transducer Frequency Range: 1 - 10MHz

V-path / dual path error correction: Automatic

Probe Zero: Manual (via integrated probe disk)

Display: 12.7mm (1/2") 4.5 digit LCD

Units (selectable): mm or inches

LED Backlight: on/off/auto

Repeatability / Stability Indicator: ✓

Operating Temperature: -30 to 75ºC (-22 to 167ºF)

Power Supply: 2 x AA batteries

Battery Life: Alkaline – 45 hrs and Nicad – 23 hrs

Gauge Weight: 312g (11oz) - including batteries

Gauge Dimensions: 63.5 x 131 x 31.5mm (2.5 x 5.17 x 1.24”)

Packing List: Unit, Selectable Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable included with data logging gauges. PC software available for download from our website.
