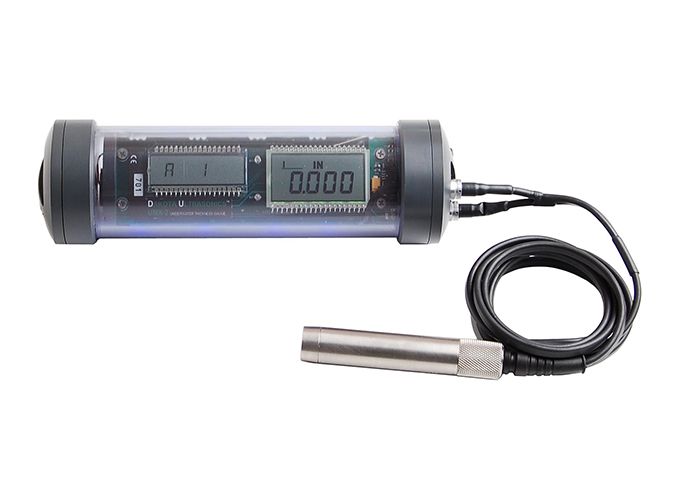

Dakota UX2 Underwater Corrosion Thickness Gauge

Measurement Range:

PE: 0.63 - 500mm (0.025 - 19.999”)

EE (ThruPaint™): 2.54 - 102mm (0.100 - 4.000”)

PECT: 0.63 - 500mm (0.025 - 19.999”)

PECT: 0.01 - 2.54mm (0.001 - 0.100”)

EEV (ThruPaint™): 1.00 - 152mm (0.040 - 6.000”)

Measurement Resolution: 0.01mm (0.001”)

Velocity Calibration Range: 1250 to 13995m/s (0.0492 to 0.5510in/µs)

Operating Temperature: -29 to 60ºC (-20 to 140ºF)

Power Supply: 3 x AA batteries

Battery Life: 50 hours on alkaline and 20 hours on NiCad (backlight off); 15 hours on alkaline and 8 hours on NiCad (backlight on)

Gauge Weight: 680g (24.0oz) - including batteries

Gauge Dimensions: 229.0 x 60.33mm (9.0 x 2.4”)

Packing List: Unit; Selectable Transducer; Couplant; Manual; Plastic Carrying Case; Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable included with data logging gauges.
